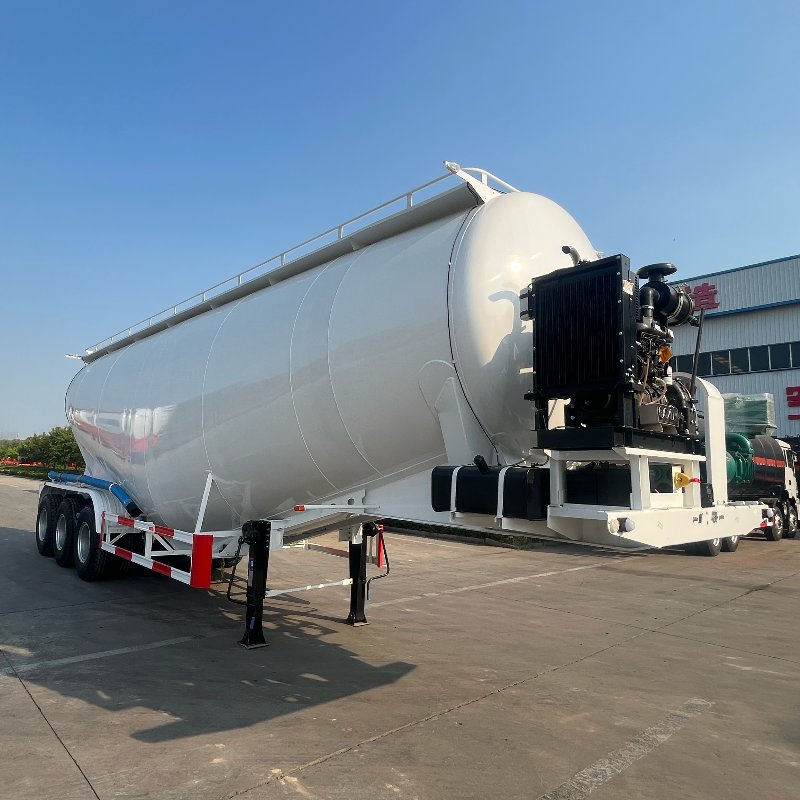

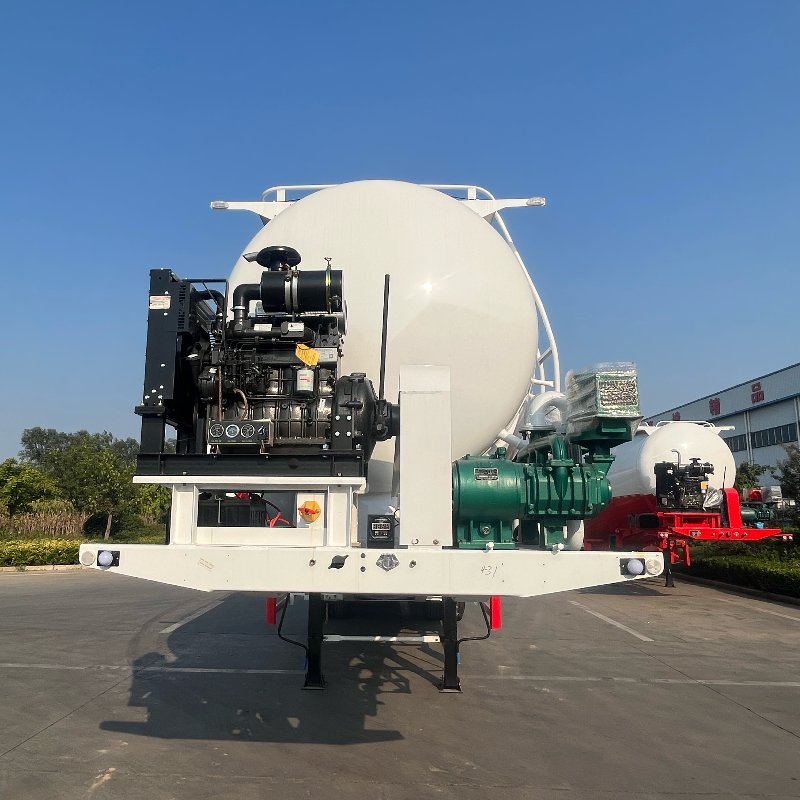

3 Axles Brand New Bulk Cement Tank Semi Trailer

This 3 Axles Brand New Bulk Cement Tank Semi Trailer is manufactured by Derun Vehicle. Designed for transporting bulk cement, equipped with a blower to help unload bulk cement, making the loading and unloading of bulk cement more efficient and convenient. The unique design makes the work more efficient. Derun will always provide you with extremely valuable trailers.

Model:DR9550TDG

Send Inquiry

Product Description

Bulk Cement Tank Semi Trailer is often used to transport powdered materials. Tank body is made of high-quality steel and has good sealing performance, which can effectively prevent the leakage of powdered materials. The volume of the tank body has various specifications to meet different transportation volume requirements.

3 Axles Brand New Bulk Cement Tank Semi Tralier Introduction

The Bulk Cement Tank Semi Trailer’s frame is a low alloy steel welded structure, the suspension system usually uses a three-axle leaf spring suspension, and the axle is a square tube axle.

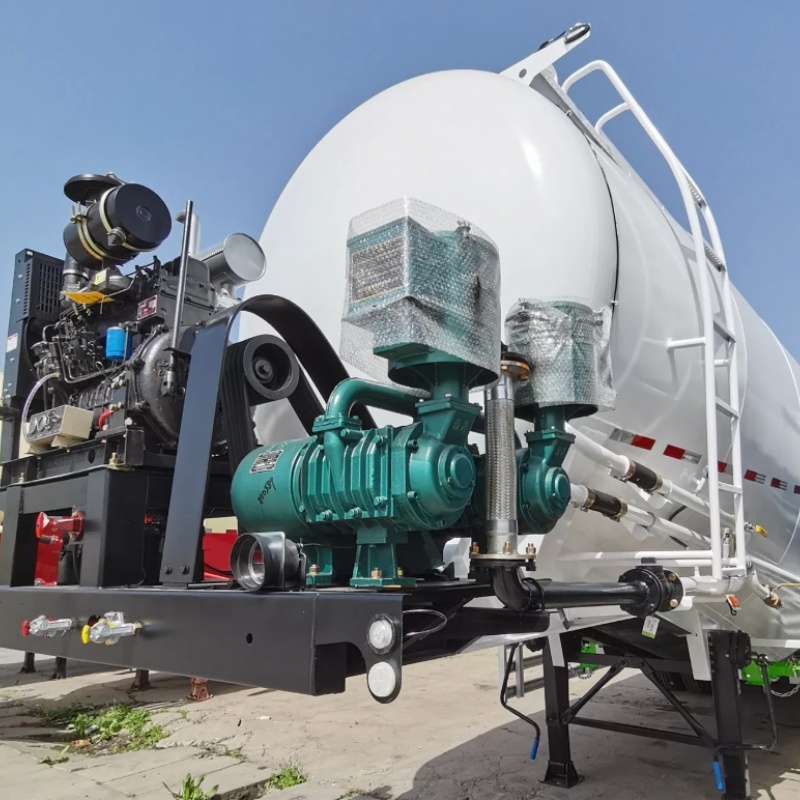

The tank body is a full metal welded part. Unloading relies on the self-provided engine to drive the air compressor to suspend the material for transportation, more effective.

3 Axles Brand New Bulk Cement Tank Semi Trailer Parameter (Specification)

Product name	Powder tanker semi trailer
Tare weight	10000kg
Size	10700mm2500mm4000mm
Volume	45CBM
Tank body	Q235A/5mm steel sheet
End plate	Q235A/6mm .ball shape
Axle	3/4 axle
Suspension	Mechanical suspension
Leaf spring	Leaf spring 10pcs9013mm
Manhole cover	500mm manhole cover .2 sets
Tire	12R22.5 12pcs
Wheel rim	9.0-22.5 12pcs

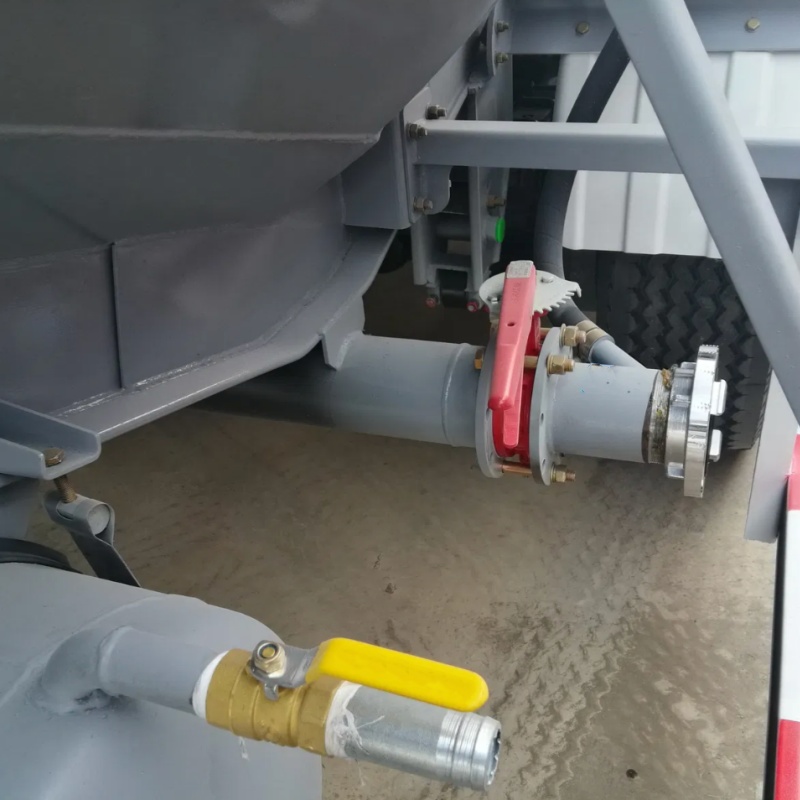

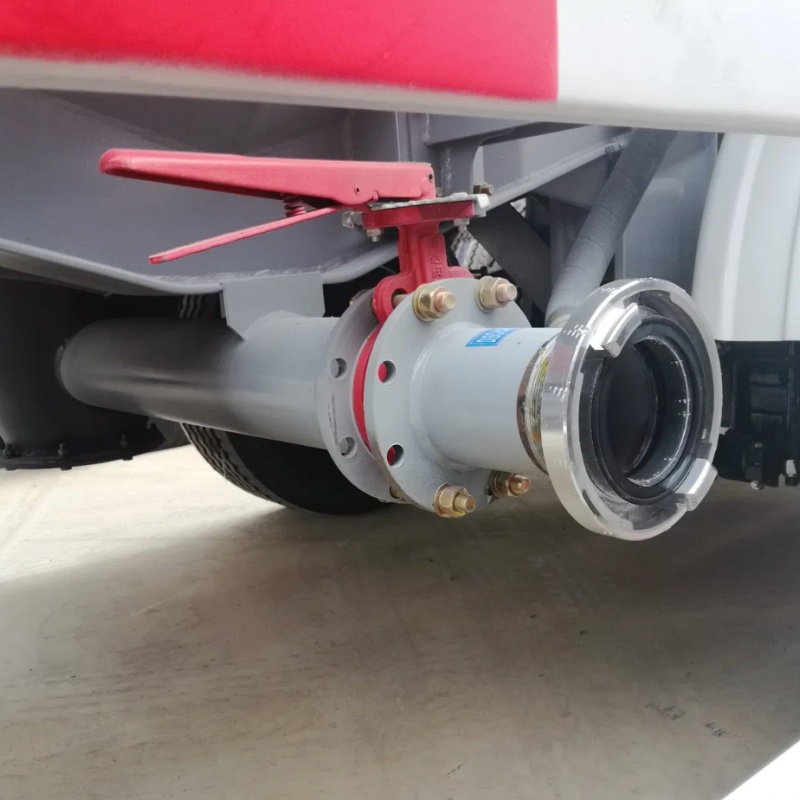

Discharge valve	4"disc valve
Discharge pipe	4"seamless steel tube
Outlet pipe	4"rubber hose.6m
Kingpin	2" bolt-in king pin
Landing gear	two-speed, manual operating ,heavy duty landing gear 24T
Air compressor	37 KW, 0.2Mpa. 1000r/Min
Compartment	Single
Braking system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks
ABS	Optional
Light	LED 8 side lights and 2 rear lights 2 width lamp
Air-charging system	2"main hole.2"check valve .1.5"safe valve.0.4Mpa.gauge
Quadratic blow	1" diameter check valve
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

3 Axles Brand New Bulk Cement Tank Semi Trailer Feature And Application

Bulk Cement Tank Semi Trailer usually be used to transport basic building materials such as cement and lime powder. It is an important tool for transporting construction materials and can supply raw materials for mixing stations and other places. Also in some factories that require a large amount of powdered raw materials, such as thermal power plants transporting fly ash, chemical plants transporting powdered chemical raw materials, etc.

3 Axles Brand New Bulk Cement Tank Semi Trailer Details

The tank body is generally made of high-strength carbon steel or alloy steel. There is a fluidizing device inside the tank body, which is usually composed of a special breathable layer. When unloading, compressed air passes through the fluidizing device to make the powdered material flow like liquid, which is convenient for unloading. The frame is generally welded with high-strength steel. Leaf spring suspension or air suspension is mostly used.
