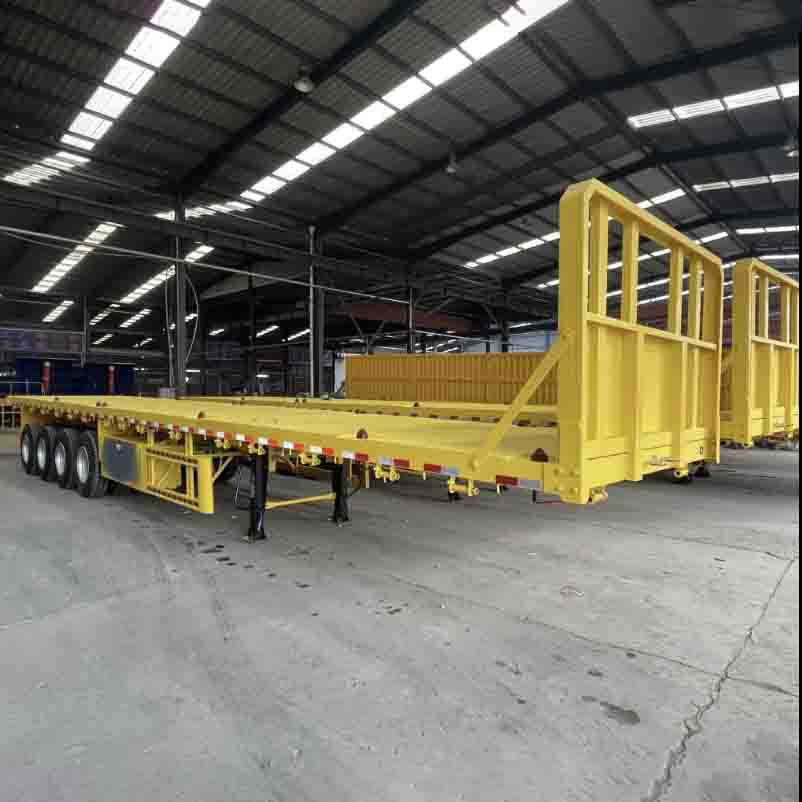

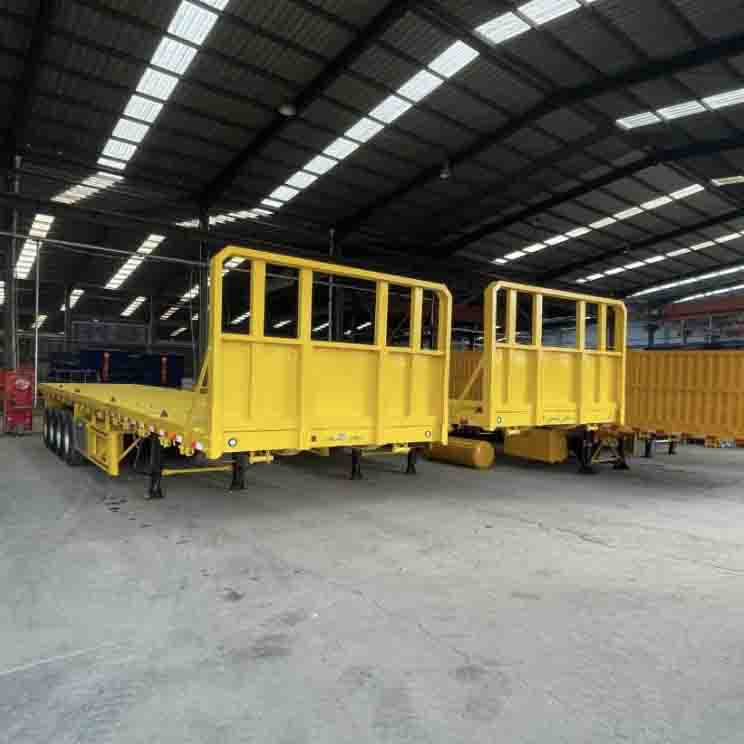

DERUN flatbed semi-trailer with front board is a high-end logistics equipment specially designed to enhance transport safety and efficiency. This model has a height-adjustable front stop on the basis of traditional flatbed semi-trailer, which effectively prevents the goods from moving forward or falling down in the process of transport, and is suitable for the safe transport of all kinds of heavy and special goods. The use of high-strength steel and advanced manufacturing technology ensures that the vehicle structure is sturdy and durable, and at the same time, it is equipped with an intelligent management system to achieve efficient scheduling and monitoring, which is an ideal choice for modern logistics and transport.
DERUN flatbed semi-trailer with front board can effectively prevent the goods from moving forward or falling down while travelling, and improve the safety of transport. The main body is made of high-quality alloy steel material, which undergoes precision machining and strict quality inspection to ensure excellent load-bearing capacity and long service life of the vehicle. Different types of straps, locks and anti-slip mats can be configured according to customers' needs to meet the fixing needs of different goods and enhance loading and unloading efficiency.
DERUN flatbed semi-trailer with front board is equipped with a sturdy front stop on the basis of traditional flatbed semi-trailer, which not only improves the stability during transport, but also further strengthens the protection ability of the goods, especially suitable for transport scenarios that need to fix the loading or to prevent the goods from sliding forward.
Flatbed Semi Tralier |
|
Dimension (mm) |
12500mm*2500mm*1550mm or customized size |
Tare Weight |
6.5-7 Ton |
Payload |
40T-80T |
Main Beam |
Q 345B high quality Carbon Steel |
Beam height 500 mm, Upper plate 14 mm, lower plate 16 mm: Middle plate 8 mm |
|
Platform |
3/4mm pattern board |
Twist Locks |
12 pcs container lock |
Axles |
2/3/4 pcs, 13T16T,BPW/FUWA /DERUN |
King Pin |
2 or 3.5 inch |
Leaf Spring |
90*13-10layer, 4/6/8 sets |
Suspension system |
Mechanical Suspension / air suspension / Bogie suspension (Germany Type or America Type ) |
Tire |
12R22.5, 12.00R20,315/80R22.5,12 pcs |
Landing Gear |
Standard 28Ton, JOST brand |
Brake system |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber;Two 40L air tanks, ABS Optional |
Electrical system |
1. Voltage:24V, LED lights |
2. Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
3. Receptacle: 7 wire |
DERUN flatbed semi-trailer with front board is made of wear-resistant and corrosion-resistant special steel plate with anti-slip treatment on the surface, which increases friction and ensures stable cargo. Integrated with advanced ABS anti-lock braking system to shorten the braking distance. Equipped with high-brightness LED lamps, including turn signals, brake lights, and outline lights, enhancing visibility at night and in bad weather. Heavy-duty and durable tyres are selected to support long-distance and high-speed driving, reduce wear and tear, and improve fuel economy.
Derun flatbed semi-trailers with front board are widely used in a variety of industries, including but not limited to: logistics, construction, agricultural harvesting, energy and minerals as well as special cargo transport, etc., ensuring safe delivery through customised fixing solutions.
