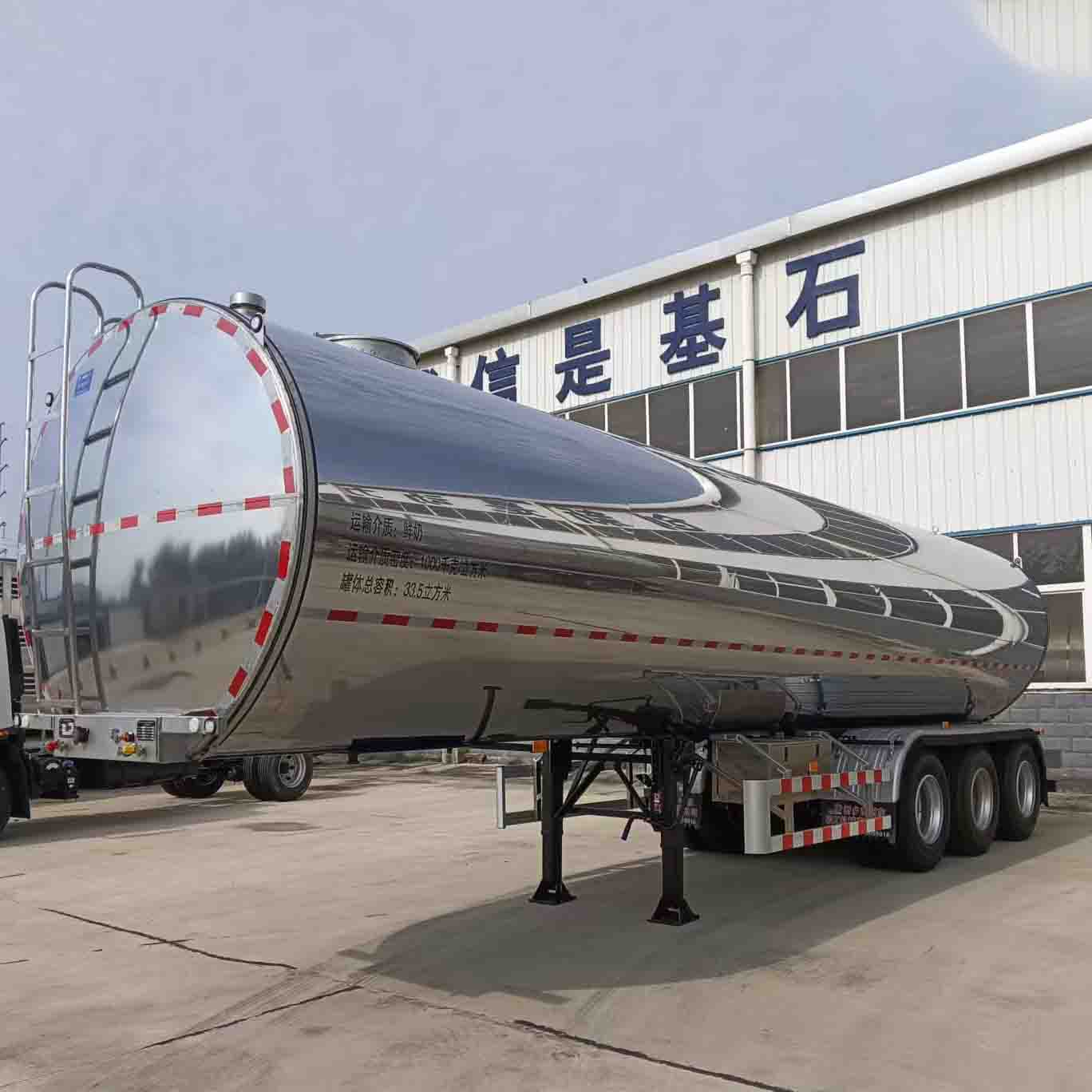

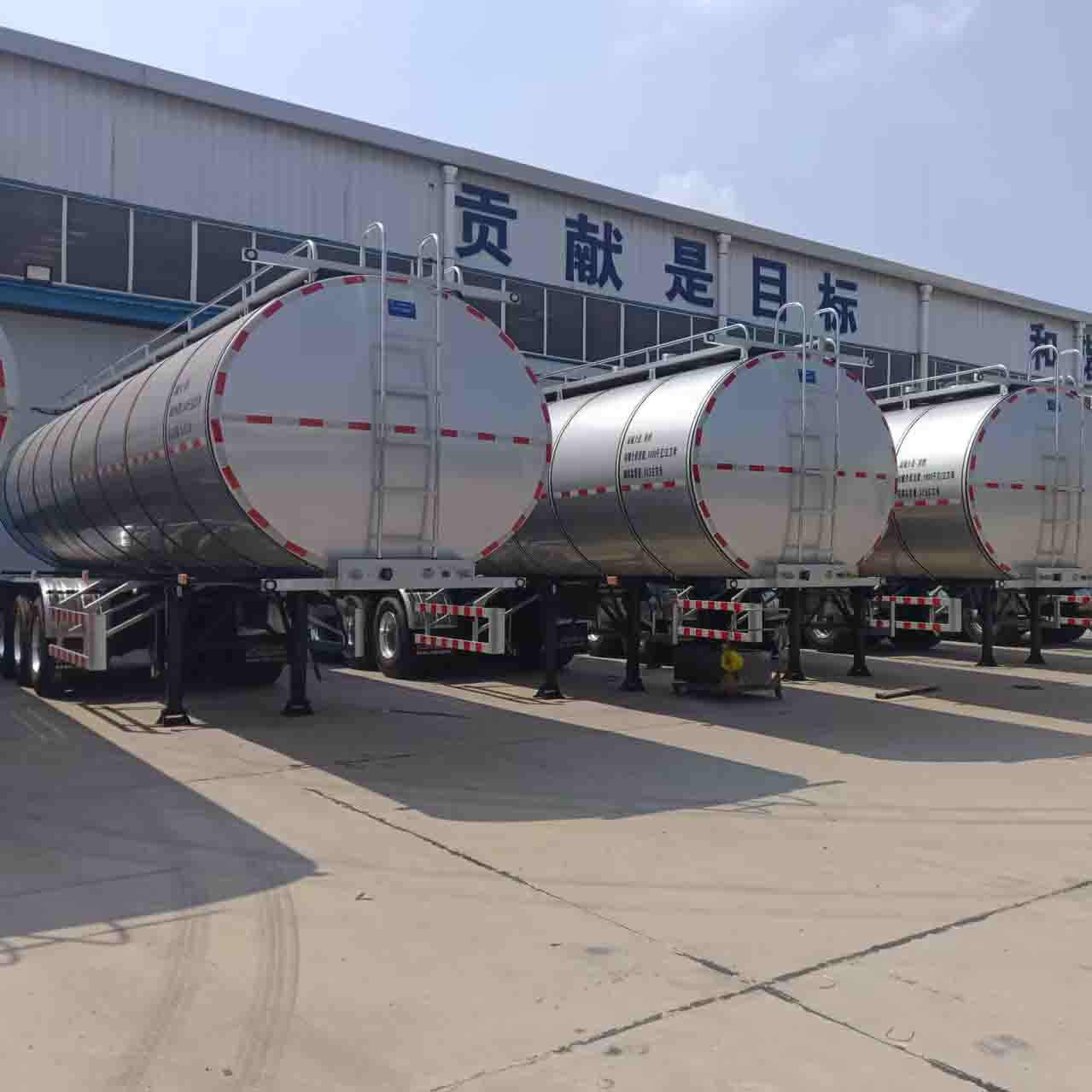

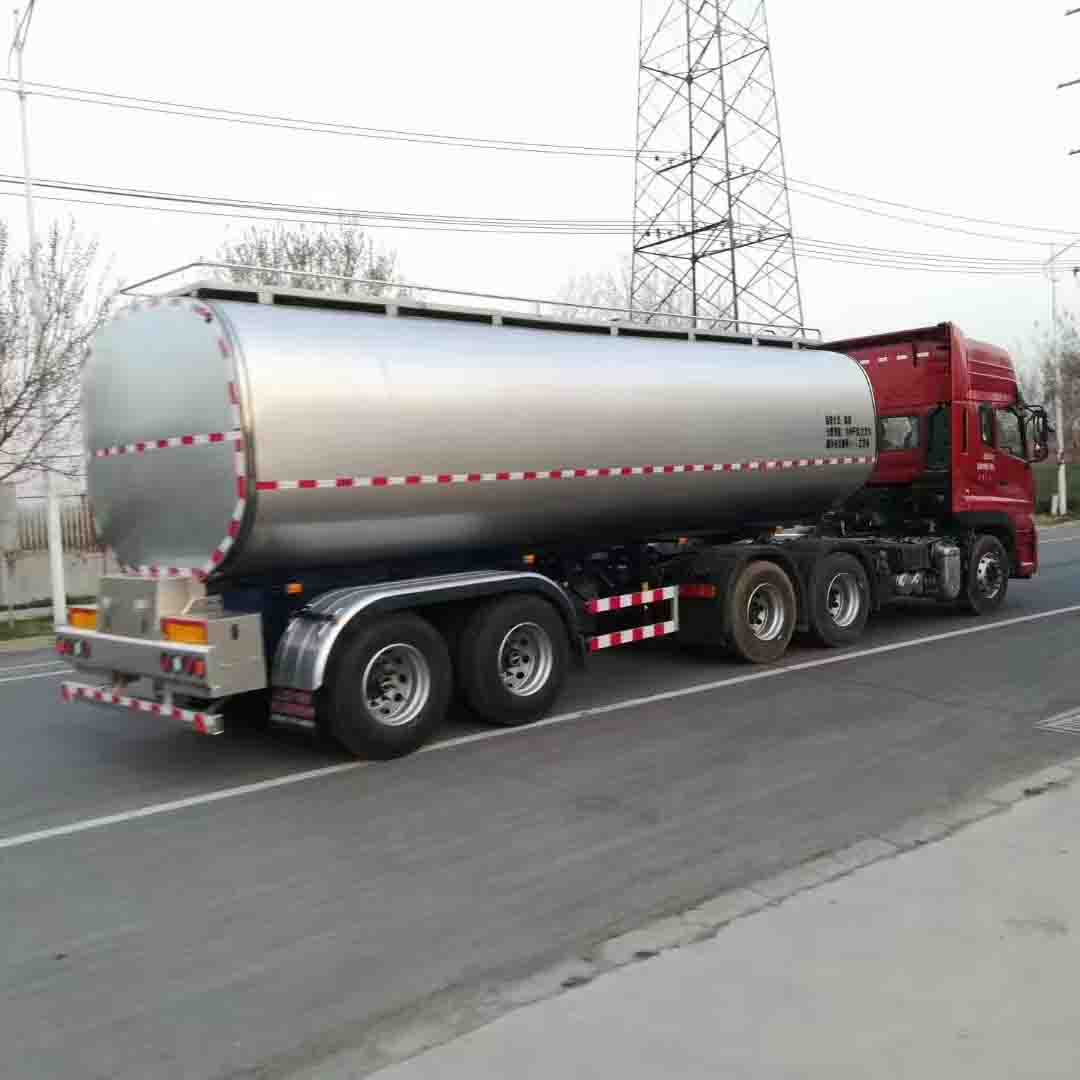

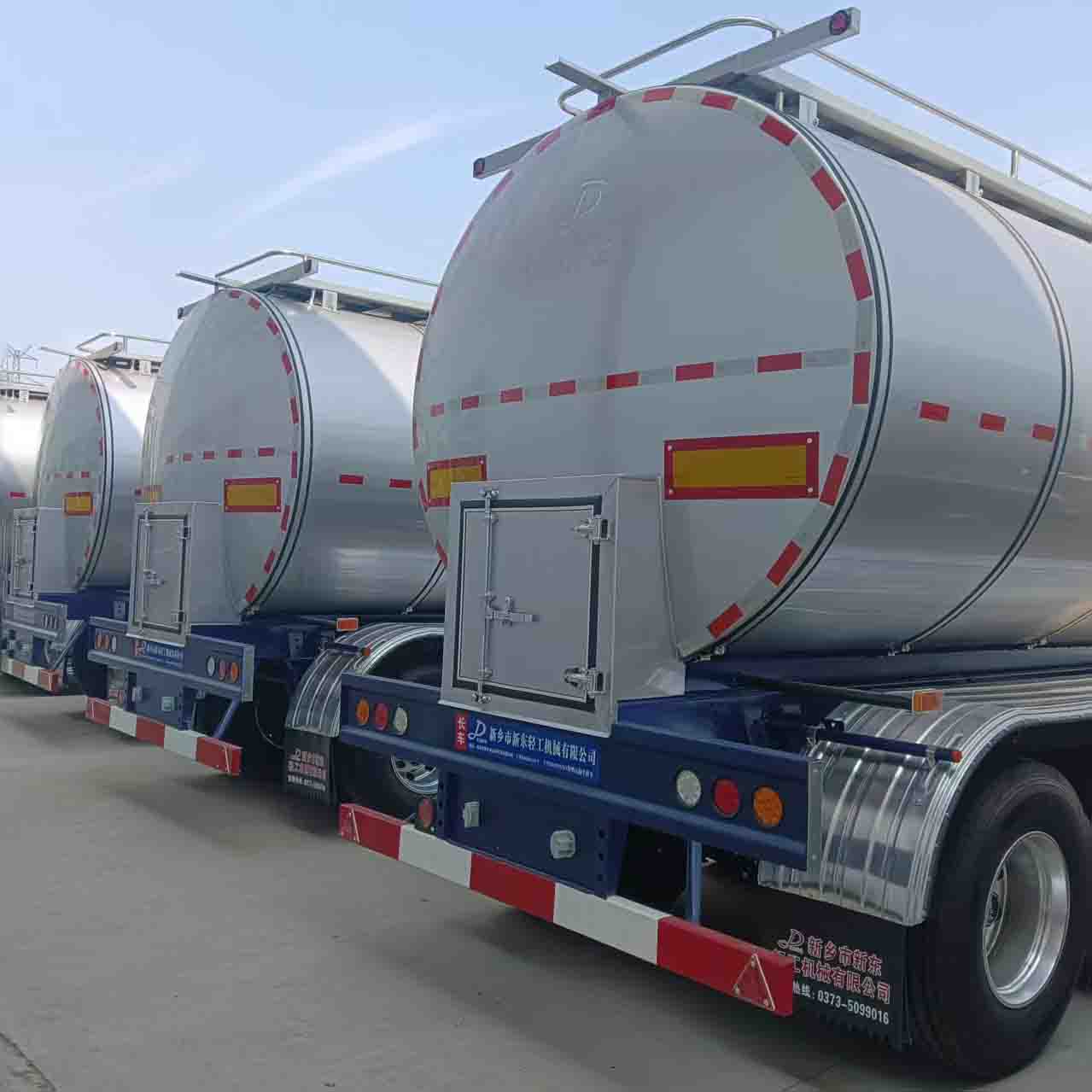

Derun 30t milk tank semi trailer are key pieces of equipment in the dairy supply chain, designed to transport milk and other liquid dairy products efficiently and safely. As a trusted partner of the dairy industry, Derun milk tank semi traile are widely recognised and trusted for their excellent performance, advanced technology and strict quality control.
Derun milk tank semi trailer are made of high quality stainless steel to ensure that the tanks are robust and meet food hygiene standards. The inside of the tank is smooth and free of dead corners, easy to clean and sterilise, effectively preventing the growth of bacteria and safeguarding the hygiene and safety of dairy products. At the same time, the tank is equipped with an efficient thermal insulation system, which can maintain a suitable low-temperature environment and extend the shelf life of dairy products.
DARUN auto milk tank has a beautiful appearance and reasonable structure design, which is easy to operate and maintain. The outer tank is designed with double-layer insulation and the middle is filled with high-density insulation material to ensure minimal temperature fluctuation during transport and maintain the freshness and quality of dairy products. The top of the tank is equipped with openings for easy cleaning, loading and unloading, and a sealing device to prevent liquid leakage and external pollution.
Size |
10500mm*2500mm*3700mm |
Volume |
30-60m³ |
Tank body |
aluminium alloy |
End plate |
aluminium alloy |
Axle |
3 axle BPW brand (Optional) |
Suspension |
Air suspension (Optional) |
Leaf spring |
Air bag (Optional) |
Manhole cover |
500mm manhole cover with breath valve .2 sets (Optional) |
Tire |
12R22.5 12pcs (Brand and specs optional) |
Wheel rim |
9.0-22.5 12pcs (Brand and specs optional) |
Discharge valve |
4"disc valve |
Discharge pipe |
4"seamless steel tube |
Bottom valve |
1 set |
Kingpin |
2"/3.5" bolt-in /welded king pin |
Landing gear |
JOST brand Two-speed, manual operating ,heavy duty landing gear 28T |
Compartment |
Single or Multi (Optional) |
Braking system |
WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
EBS |
WABCO EBS |
Light |
LED 8 side lights and 2 rear lights 2 width lamp |
Painting |
Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
Accessories |
One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
The Derun Milk Tank semi trailer are also perfected in the details. The tank is equipped with a CIP cleaning device that can automatically complete the cleaning and sterilisation process, improving cleaning efficiency and hygiene. Meanwhile, the milk tanks are also equipped with advanced electronic monitoring systems, including temperature sensors, liquid level gauges and GPS positioning, etc., which can monitor the temperature, liquid level and vehicle position inside the tanks in real time to ensure the safety and control of the transport process. In addition, the pumps, pipelines and quick couplings of the milk tanks are made of food-grade materials to ensure the hygiene and safety of dairy products during the loading and unloading process.
Derun milk tank semi trailers are widely used in farms, dairy processing plants, food distribution centres and many other applications. In farms, milk tanks can efficiently transport fresh milk from farms to processing plants; in dairy processing plants, milk tanks are used for storing and transporting processed dairy products; in food distribution centres, milk tanks are responsible for the safe and fast delivery of dairy products to various points of sale.
