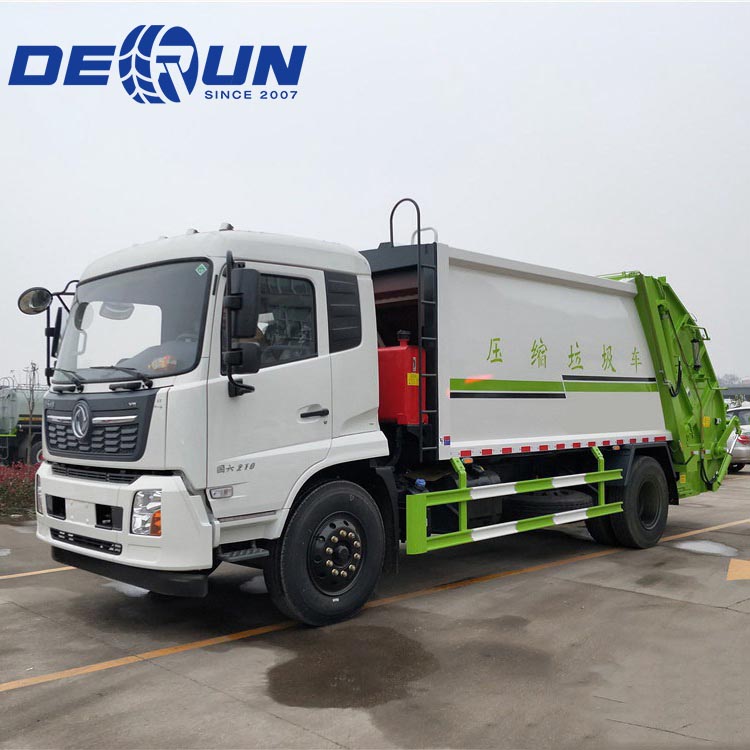

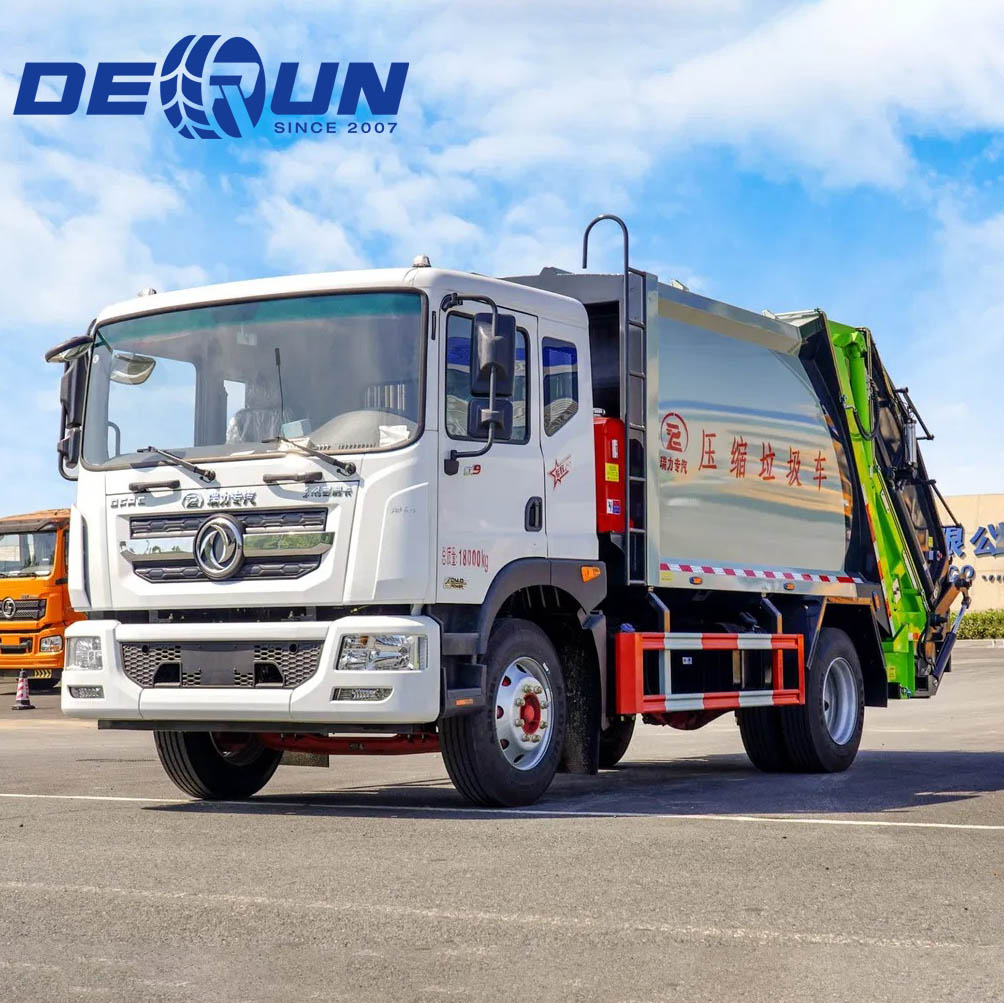

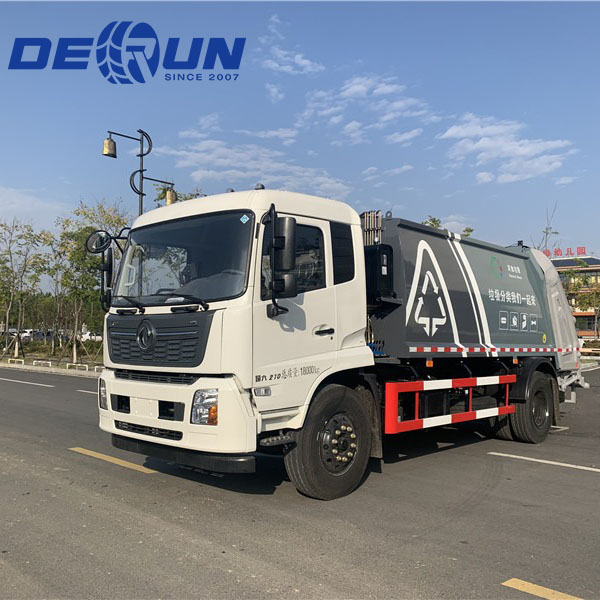

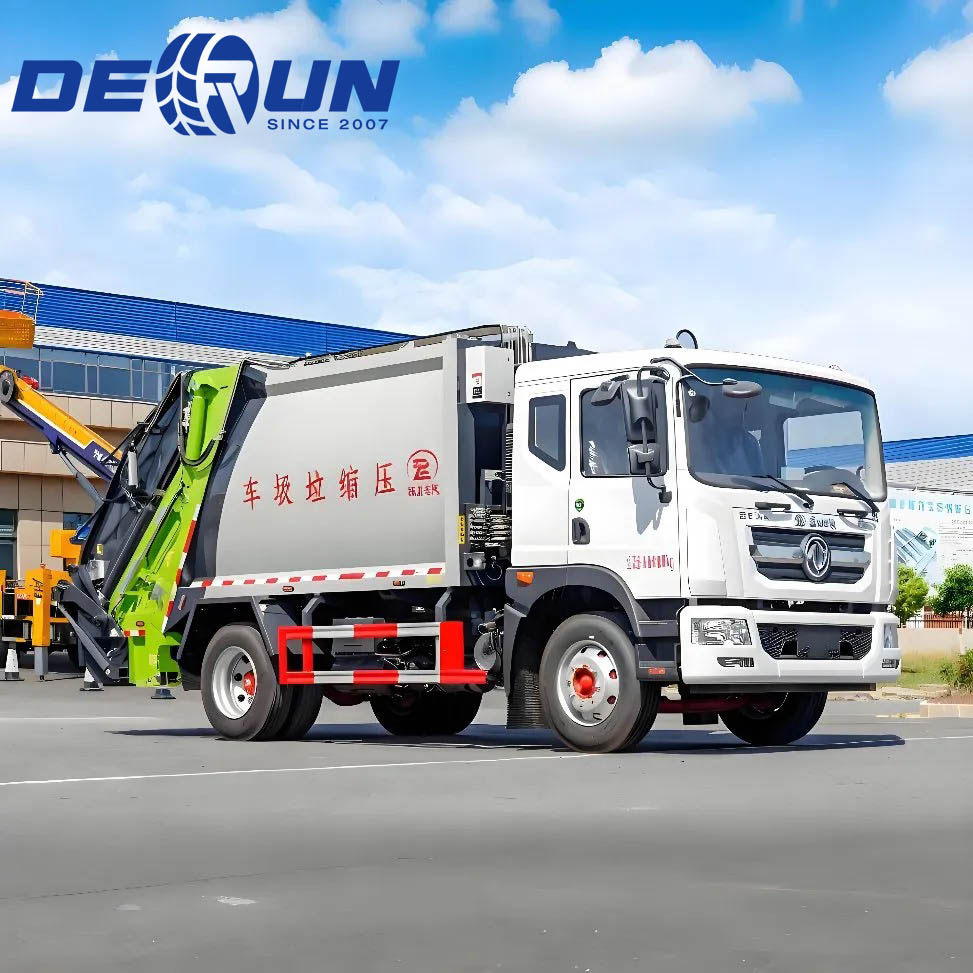

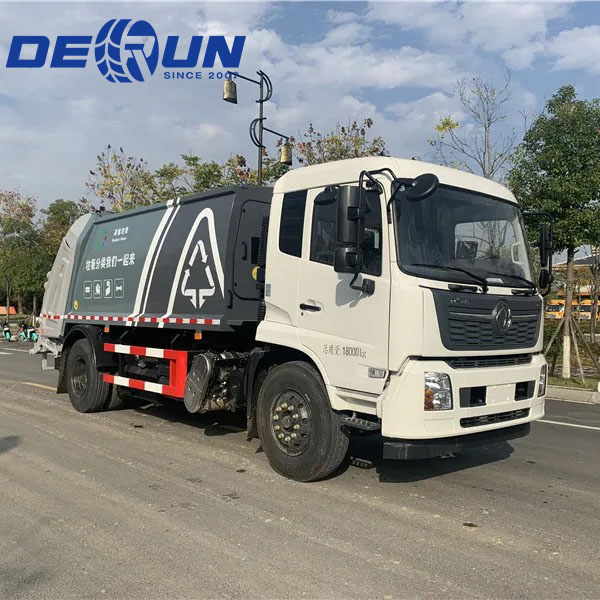

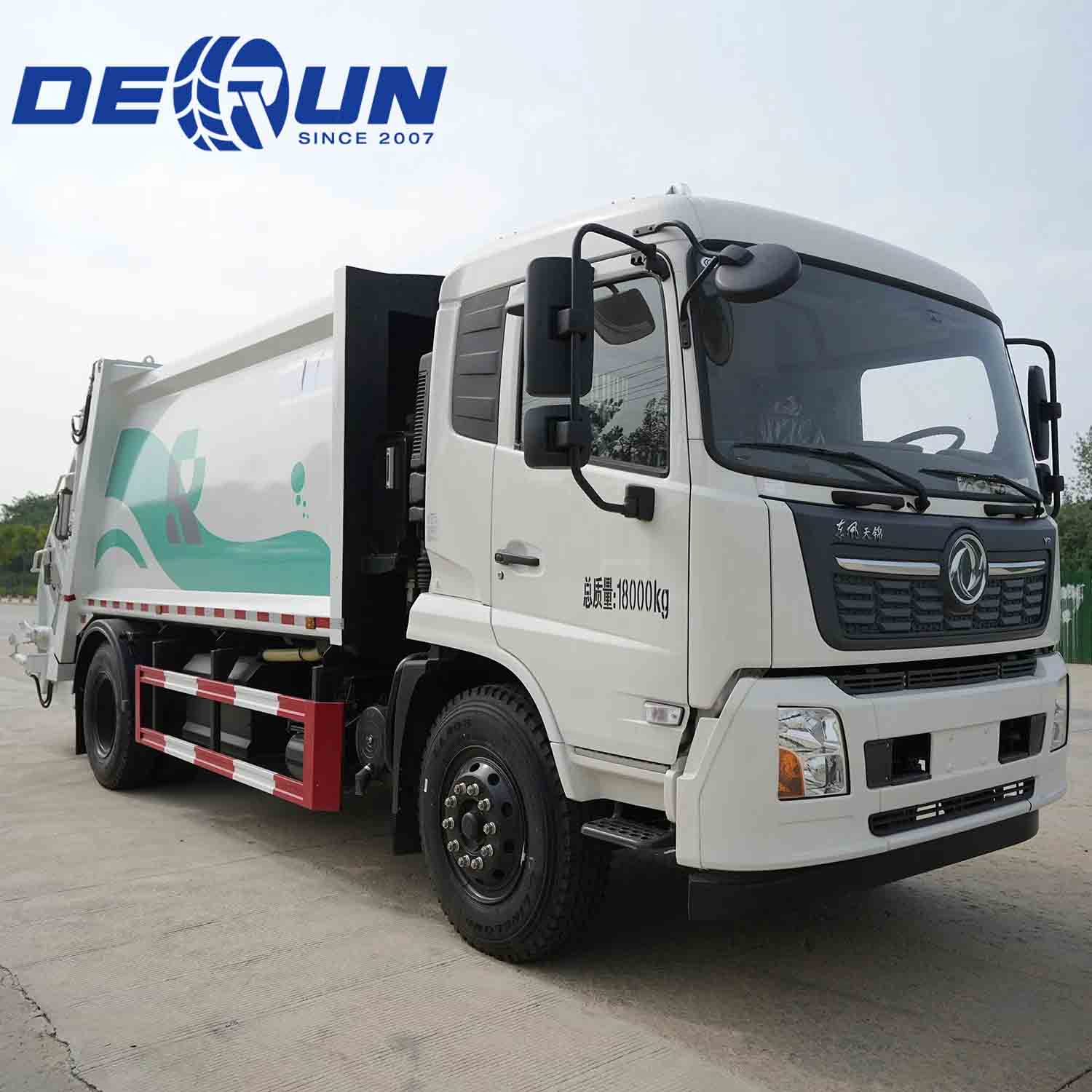

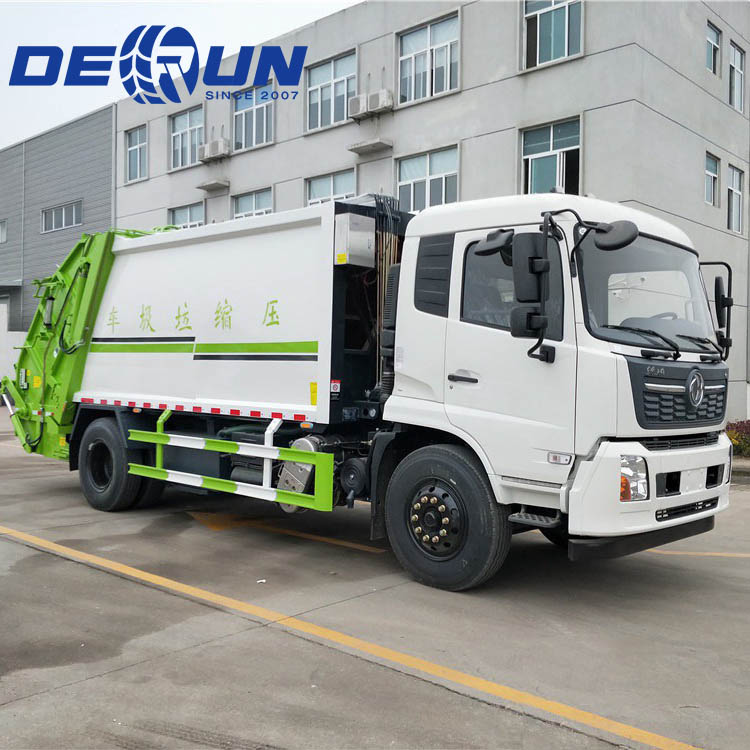

Srpski језик The Dongfeng 4x2 six-wheel garbage collection truck is a highly efficient and reliable medium-duty specialised truck designed specifically for urban sanitation and waste collection operations. Built upon Dongfeng Commercial Vehicle's proven medium-duty platform, it excels with outstanding loading capacity, agile manoeuvrability and stable performance, establishing itself as core equipment for municipal sanitation, community cleaning and industrial estate waste collection and transfer. The garbage light truck features a robust, angular design, often finished in striking eco-friendly colour schemes. This not only enhances functionality but also embodies the clean image of modern cities. The model seamlessly integrates chassis power with specialised body functionality, delivering an all-weather, high-efficiency waste collection solution. It serves as a vital tool for elevating environmental hygiene standards in both urban and rural settings.

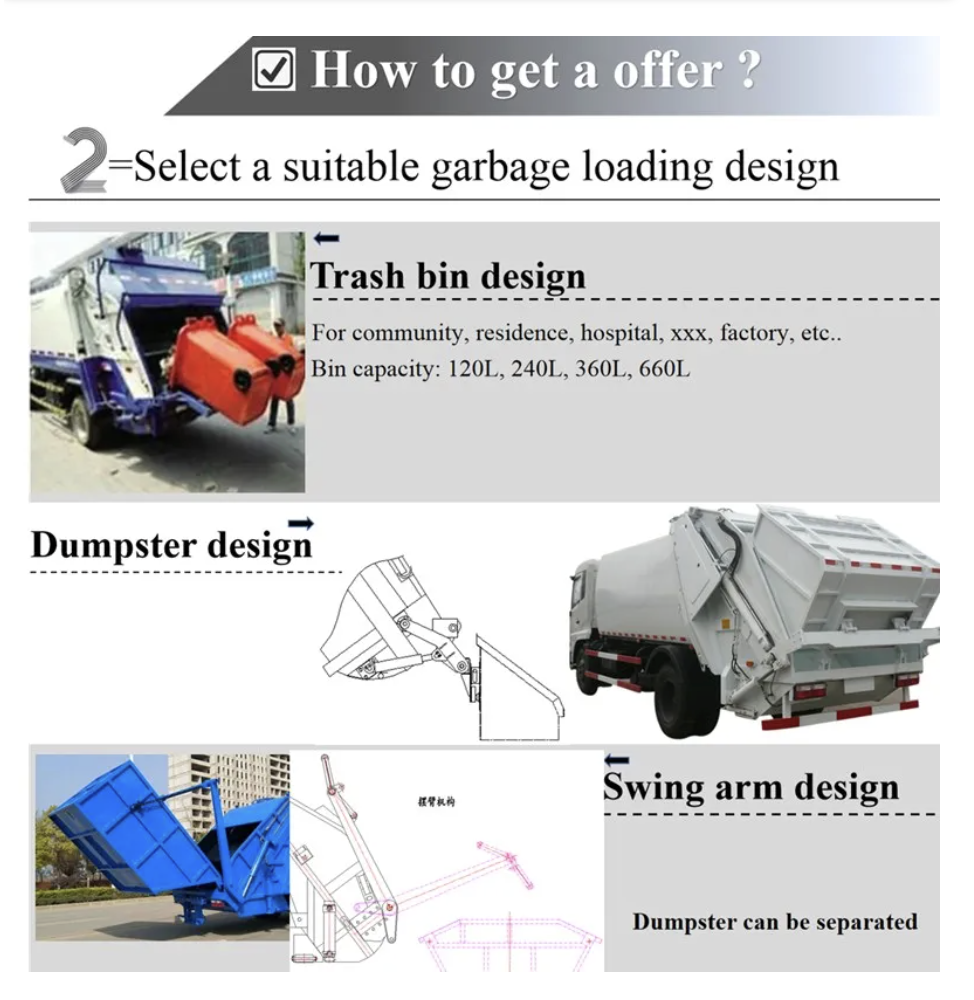

This truck pays attention to detail which ensures both durability and practicality. Its chassis employs the classic Dongfeng 4x2 drive configuration: front-wheel steering with rear-wheel drive, featuring a six-wheel layout (single front axle, single rear axle) that balances load capacity with manoeuvrability. Core power is typically supplied by a National VI emission standard-compliant Dongfeng Cummins or Yuchai series diesel engine, delivering robust yet environmentally conscious performance. This is paired with either a manual or automatic transmission to handle diverse road conditions. The superstructure can be customised with various waste compaction bodies, lifting mechanisms, or loading systems—such as swing-arm, hook-lift, or compression types—according to operational requirements. Bodies are constructed from high-strength, wear-resistant steel plates with excellent sealing properties to prevent secondary contamination. The cab design prioritises ergonomics, offering drivers a comfortable operating environment, with optional intelligent monitoring systems available.
|
Vehicle Model |
CSC5180ZYS6D |
||
|
Basic Vehicle Parameters |
Drive Type |
4×2 |
|
|
Total Weight (kg) |
18000 |
||
|
Curb Weight(kg) |
9665 |
||
|
Vehicle Appearance Parameters |
Length (mm) |
9350 |
|
|
Width (mm) |
2550 |
||
|
Height (mm) |
3100 |
||
|
Wheelbase (mm) |
4700/5000 |
||
|
Performance Parameters |
Maximum Speed (km/h) |
89 |
|
|
Maximum Climbing Grade (°) |
|||
|
Chassis Configuration Parameters |
Engine |
Engine Emission Standards |
Euro VI |
|
Manufacturer |
Cummins |
||
|
Displacement(L) |
6.2L |
||
|
Rated Power (Kw) |
169 |
||
|
Cab |
Type |
Single Row Flat Top Cab |
|
|
Model |
Tianjin D530 |
||
|
Standard Configuration |
Bluetooth Radio, Laminated Glass, Electric Doors And Windows, Central Locking, Wide Bumper, Roof Box, Multi-Function Steering Wheel,External Sun Visor |
||
|
Gearbox |
Gearbox Type |
Fast 8-speed transmission |
|
|
Front Axle |
Type |
Drum Brake |
|
|
Loadable Weight (Kg) |
4500 |
||
|
Rear Axle |
Gearbox Type |
Drum Brake |
|
|
Loadable Weight (Kg) |
9000 |
||
|
Leaf Springs |
Number of pieces |
8/10+8 |
|
|
Tire |
Type |
Steel Wire Tire |
|
|
Quantity |
6 |
||
|
Model |
10.00R20-18PR |
||
|
Steering System |
Type |
Hydraulic Power Steering System |
|
|
Braking System |
Brake Type |
Drum Brakes With ABS Anti-Lock Braking System |
|
|
Service Brake System Type |
Dual Circuit Air Brake |
||
|
Parking Brake System Type |
Spring Brake |
||
|
Parking Control Type |
Manual Brake Operation |
||
|
Electrical System |
System Voltage |
24V |
|
|
Battery |
100AH Dual Battery |
||
|
Upper Body Configuration Parameters |
Trash Bin Volume (M³) |
15 |
|
|
Bag Thickness (mm) |
Wall Thickness 4mm |
||
|
Compression Density (T/M³) |
0.6-0.8 |
||
|
Compression Cycle Time (S) |
≤30 |
||
|
Trash Unloading Time (S) |
≤60 |
||
|
Other Configurations |
Wanye Hydraulic Oil Pump, Zhongmei Multi-Way Valve, Boli Cylinder, Full Hydraulic Operation, With Back Pressure Valve, Two-Way Balance Valve, Siemens PLC Electronic Control System (With One-Button Operation And Manual Operation), Two Operation Boxes (Both Inside The Cab And The Left And Right Sides Of The Rear Can Be Operated), One Lighting Lamp, A Sewage Tank On The Side Of The Beam, A Sewage Tank At The Bottom Of The Filler To Ensure That There Is No Sewage Leakage In The Tank, And A 240-Liter Garbage Can Flip Mechanism At The Rear |
||

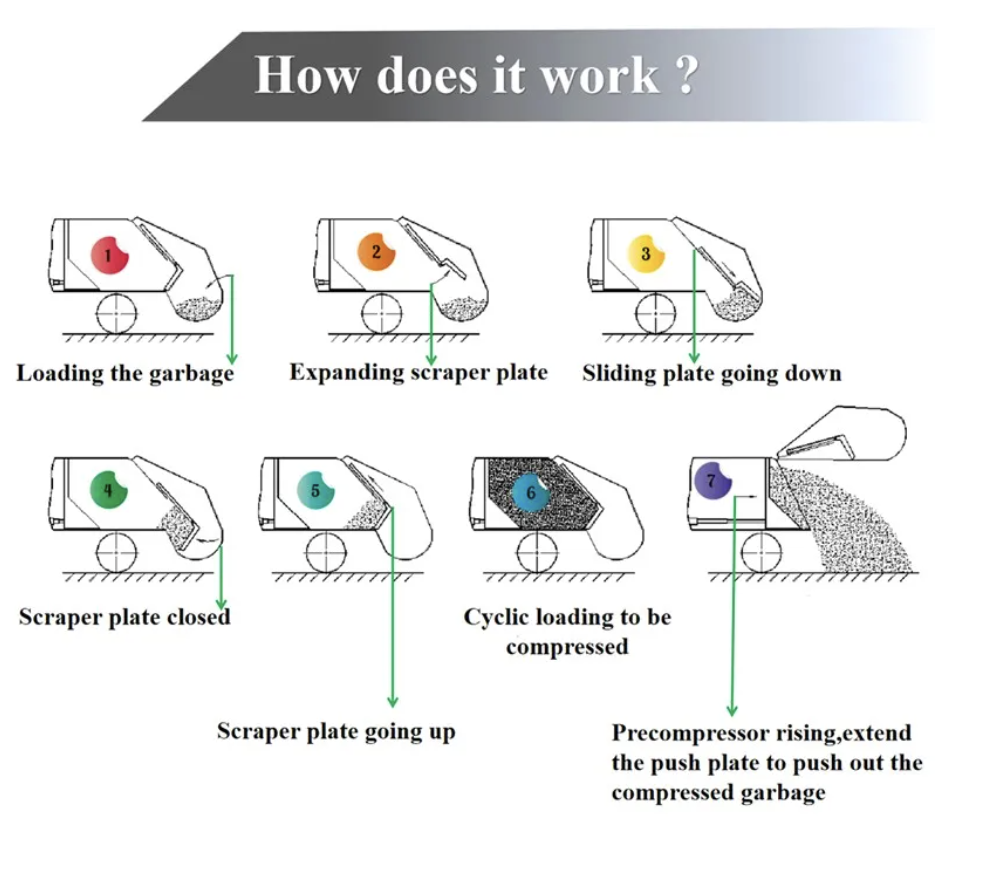

The Dongfeng 4x2 six-wheel garbage collection truck integrates practicality, economy, and technical reliability. Its core strength lies in the mature, stable Dongfeng chassis technology, providing a robust and durable foundation for the specialised superstructure. The truck undergoes targeted tuning to maintain excellent starting, hill-climbing, and driving performance even when fully loaded, making it particularly suitable for operations in urban streets and residential areas with frequent starts and stops. The superstructure features a scientifically designed mechanism that maximises loading efficiency and simplifies operation, significantly reducing the physical strain on sanitation workers. Additionally, the truck prioritises maintenance convenience, with key components easily accessible for servicing, effectively lowering lifecycle operational costs. Through optimised design, it achieves maximum payload capacity and box volume within compact dimensions, representing an exceptionally cost-effective choice for sanitation operations.
This product is extensively deployed across diverse scenarios involving the collection, compaction, and transfer of solid waste. Within urban management, it primarily handles the daily clearance of domestic refuse from residential areas and commercial streets. When used in conjunction with standardised refuse bins, it enables rapid waste collection and sealed transportation. In rural and township areas, it handles dispersed domestic waste and certain solid materials. Furthermore, it is commonly integrated into internal sanitation systems at large industrial sites, residential estates, schools, and transport hubs to maintain environmental cleanliness. Its adaptable compaction function significantly reduces waste volume for enhanced single-trip efficiency, while the sealed design prevents spillage during transit, meeting environmental standards. The Dongfeng 4x2 six-wheel refuse collection vehicle, with its versatility and adaptability, serves as a crucial link in establishing a seamless sanitation chain from collection points to transfer stations or treatment facilities.
