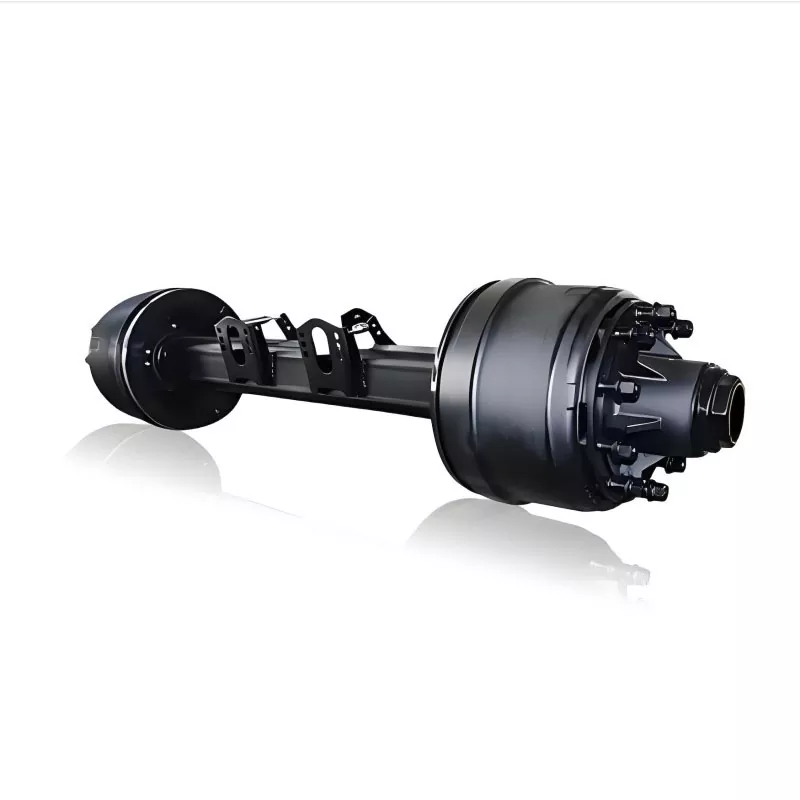

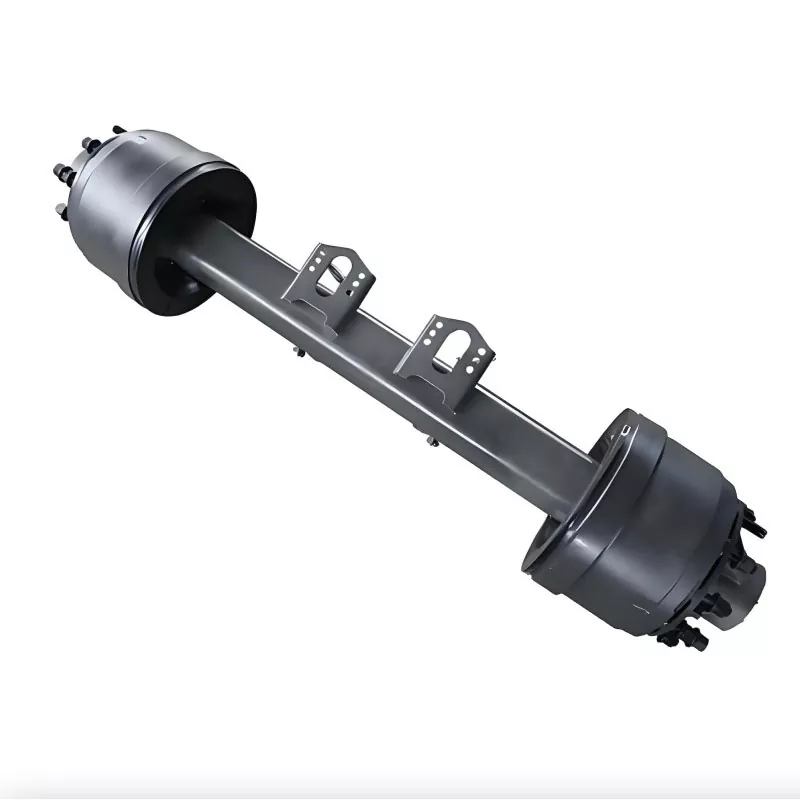

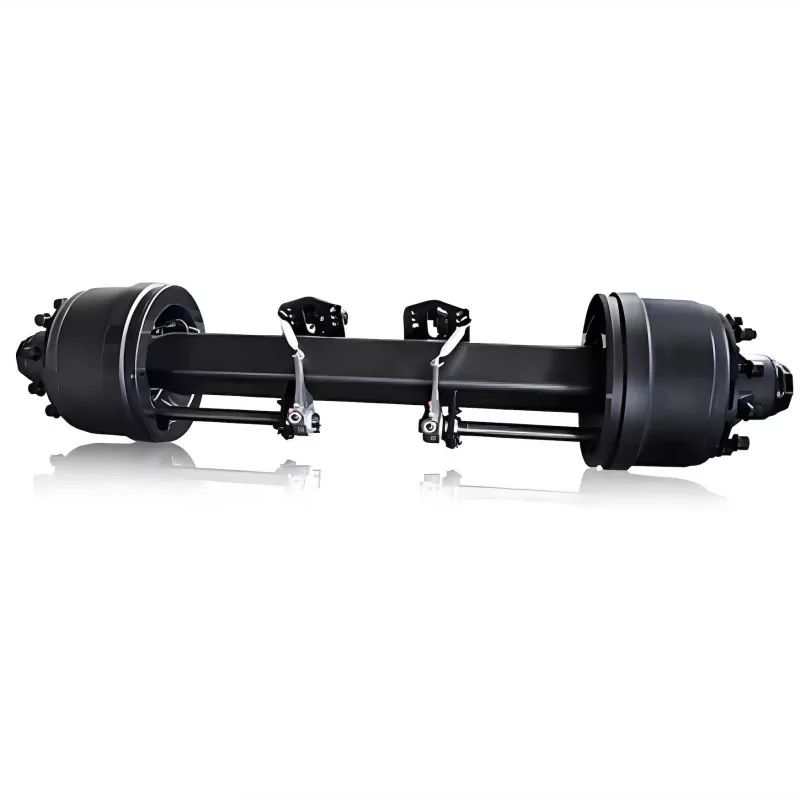

Heavy Duty 13Ton Trailer Axle

DERUN cordially invites you to purchase heavy Heavy Duty 13Ton Trailer Axle in bulk from our factory. Our CE-certified products boast a substantial factory inventory, and we are committed to offering you exceptional service along with factory-direct discounted prices.

Send Inquiry

Product Description

DERUN durable heavy duty 13 ton trailer axle is an essential component for those who need a durable and reliable heavy-duty transportation solution. With its rugged construction and advanced engineering, this axle is designed to support trailers with loads up to 13 tons, making it the preferred choice for the logistics and construction industries.

Heavy Duty 13Ton Trailer Axle Introduction

DERUN heavy duty 13 ton trailer axle is carefully built to meet the high demands of commercial transportation. It is designed to withstand the weight of heavy loads while maintaining optimal performance and safety. The axle uses state-of-the-art materials and manufacturing processes to provide a rugged and durable product that ensures longer service life and lower maintenance costs.

Heavy Duty 13Ton Trailer Axle (Specification)

MODEL	BEARING CAPACITY (t)	BRAKE	CENTRE DISTANCE OF BRAKE CHAMBER L4	AXLE BEAM	CENTER DISTANCE OF SPRING CASING L3
DR-B1056	13	420×180	392	©127	2970
DR-B 1057	13	420×180	388	127	2970
DR-B 1058	13	420× 200	372	©127	2970
DR-B 1059	13	420× 200	372	中127	2970
DR-B 1060	13	420×180	392	127	2970
DR-B 1061	13	420×180	388	127	2970
MODEL	CONNECTION BETWEEN RIM AND HUB			TRACK L2 (mm)	BEARING MODEL
MODEL	STUD	PCD D1	SEAM	TRACK L2 (mm)	BEARING MODEL
DR-B1056	10-M22×1.5	285.75	280.8	1840	HM220149/10
DR-B 1057	10-M22x1.5	335	280.8	1840	HM518445/10
DR-B 1058	10-M22×1.5	285.75	220.8	1840	HM518445/10
DR-B 1059	10-M22×1.5	335	280.8	1840	HM518445/10
DR-B 1060	10-M22×1.5	285.75	220.8	1840	HM220149/10
DR-B 1061	10-M22x1.5	335	280.8	1840	HM518445/10
MODEL	TOTAL LENGTH	WEIGHT	RECOMMENDE
DR-B1056	2180	345	7.50V-20
DR-B 1057	2180	365	7.50V-20
DR-B 1058	2180	348	7.50V-20
DR-B 1059	2180	360	7.50V-20
DR-B 1060	2180	340	7.50V-20
DR-B 1061	2180	358	7.50V-20
