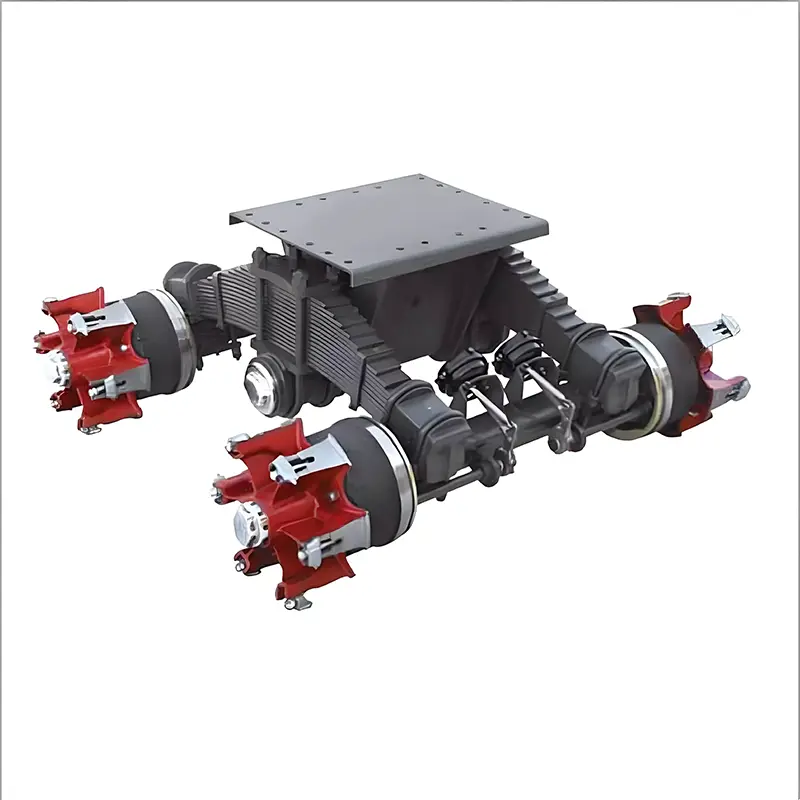

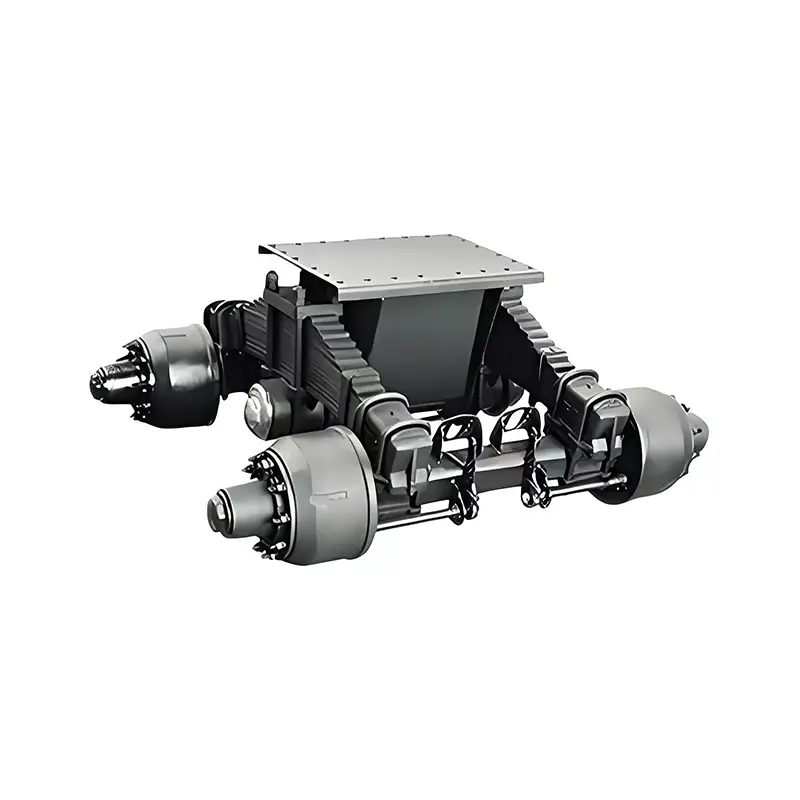

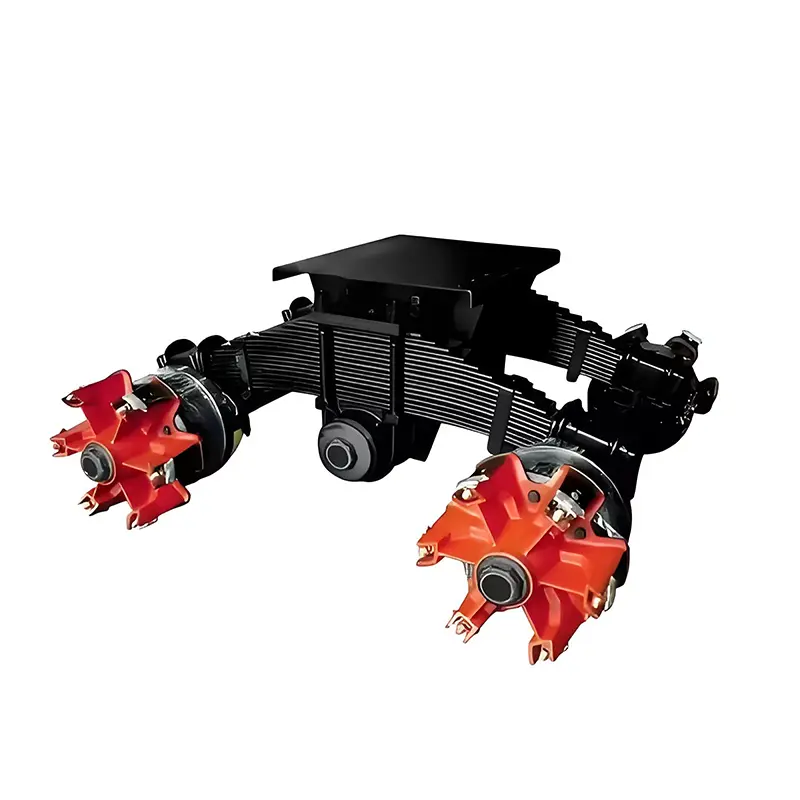

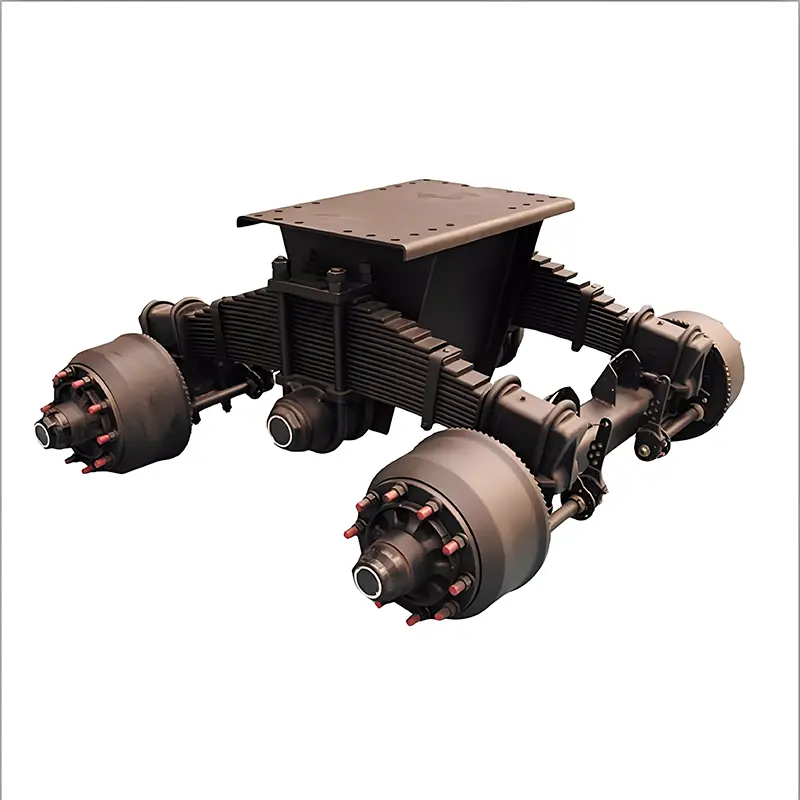

Low Mounting Plate Bogie Trailer Suspension

DERUN is a specialized manufacturer and supplier of low mounting plate bogie trailer suspension in China, guaranteeing wholesale and customized options with exceptional after-sales service and punctual delivery from our factory.

Send Inquiry

Product Description

DERUN low mounting plate bogie trailer suspension for sale is a great option for those looking for a reliable and innovative approach to trailer suspension. Carefully designed to provide excellent stability and maneuverability, this system is an ideal solution for transporting heavy and oversized loads.

Low Mounting Plate Bogie Trailer Suspension Introduction

DERUN low mounting plate bogie trailer suspension is designed to revolutionize the way trailers handle heavy loads. By lowering the mounting plate, this suspension system lowers the center of gravity, resulting in increased stability and control during transportation. The bogie design allows for a more even distribution of weight across the axle, which improves trailer performance and reduces the risk of rollover or instability.

Low Mounting Plate Bogie Trailer Suspension (Specification)

SUSPENSION MODEL	H(MM)	A1(MM)	B1(MM)	A2(MM)	B2(MM)	BEARING CAPACITY 1	A3(MM)	B3(MM)	BEARING CAPACITY 2
DR13B3-11	110	400	370	391	361	13000*2	382	352	13000*2
DR 13B3-13	130	420	390	411	381	13000*2	402	372	13000*2
DR 13B3-15	150	440	410	431	401	13000*2	422	392	13000*2
DR 13B3-18	180	470	440	461	431	13000*2	452	422	13000*2
DR 13B3-21	210	490	470	491	461	13000*2	482	452	13000*2
DR 13B3-23	230	510	490	511	481	13000*2	502	472	13000*2
DR 13B3-25	250	530	510	531	501	13000*2	522	492	13000*2
DR 13B3-27	270	560	530	551	521	13000*2	542	512	13000*2
DR 13B3-30	300	580	560	581	551	13000*2	572	542	13000*2
DR 13B3-32	320	610	580	601	571	13000*2	592	562	13000*2
DR 13B3-35	350	640	610	631	601	13000*2	622	592	13000*2

Low Mounting Plate Bogie Trailer Suspension Feature And Application

DERUN low mounting plate bogie trailer suspension is a changer in industries that require the transportation of heavy machinery, construction materials or large equipment. Its ability to handle demanding loads while maintaining optimal safety makes it the first choice for logistics and construction companies looking to improve their transportation operations.

Low Mounting Plate Bogie Trailer Suspension Details

DERUN low mounting plate bogie trailer suspension is positioned lower than conventional setups, which not only lowers the center of gravity, but also allows for a more streamlined profile, reducing drag and improving fuel efficiency. The suspension system utilizes an advanced dampening mechanism that adjusts to the weight of the load and road conditions, ensuring a smoother ride for sensitive cargo.
