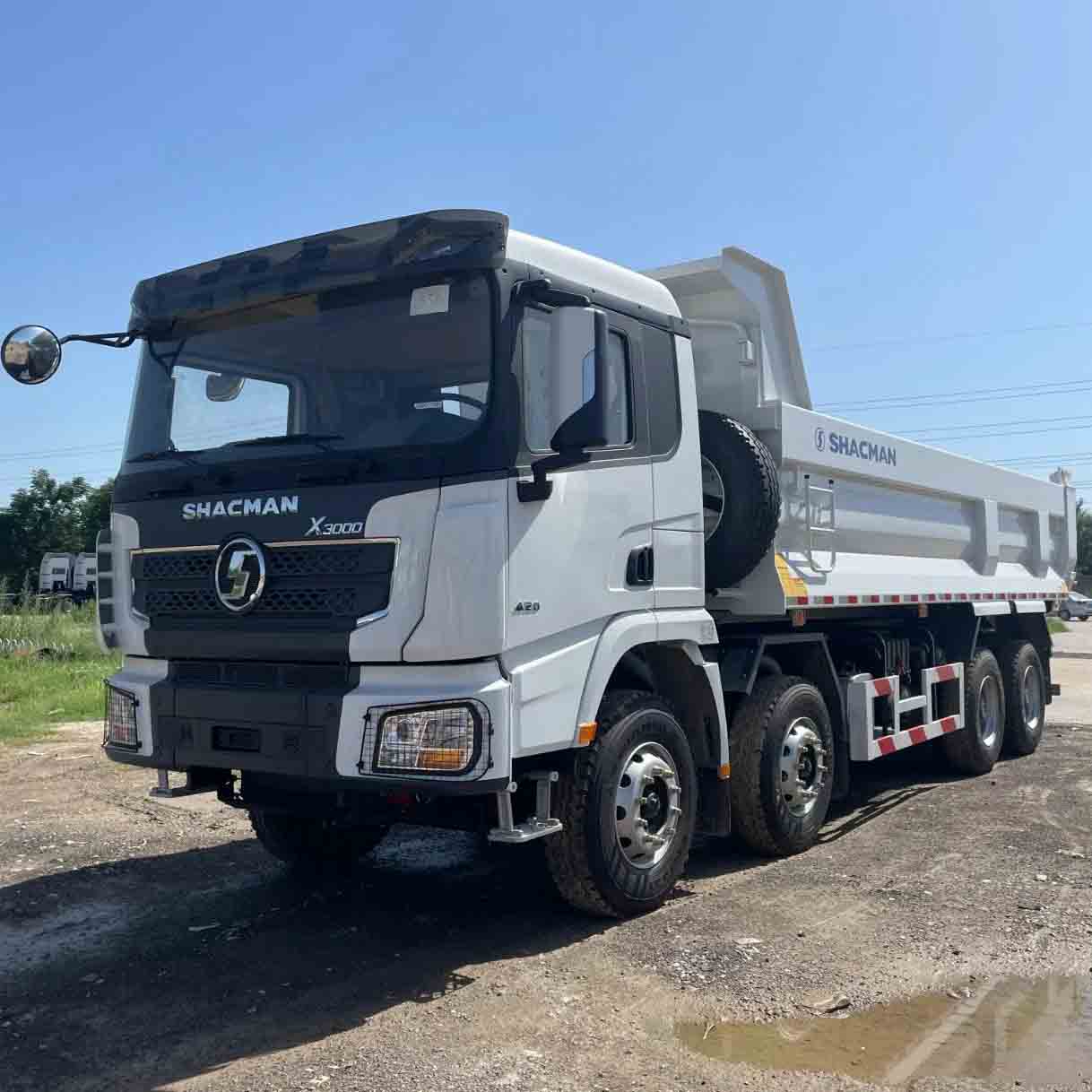

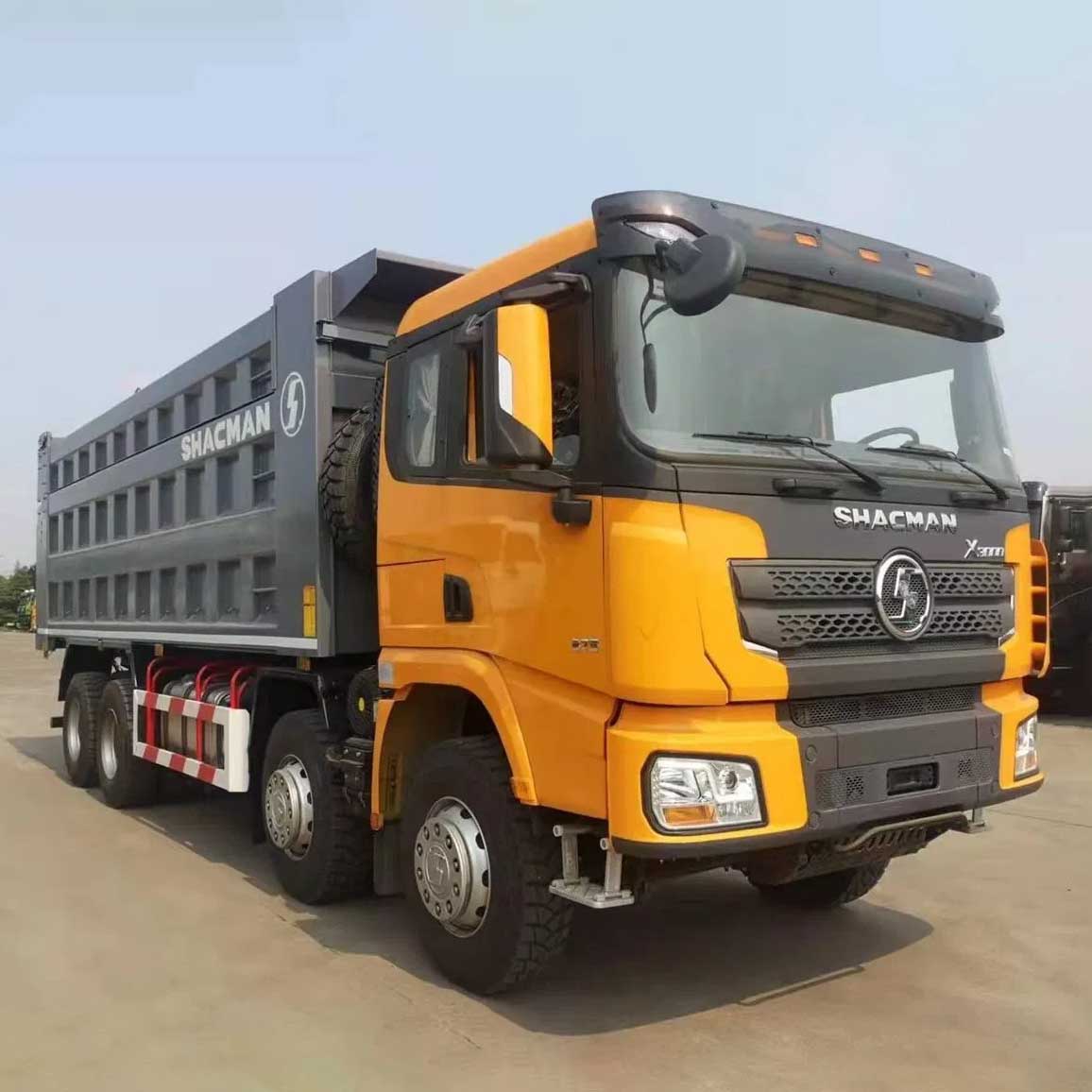

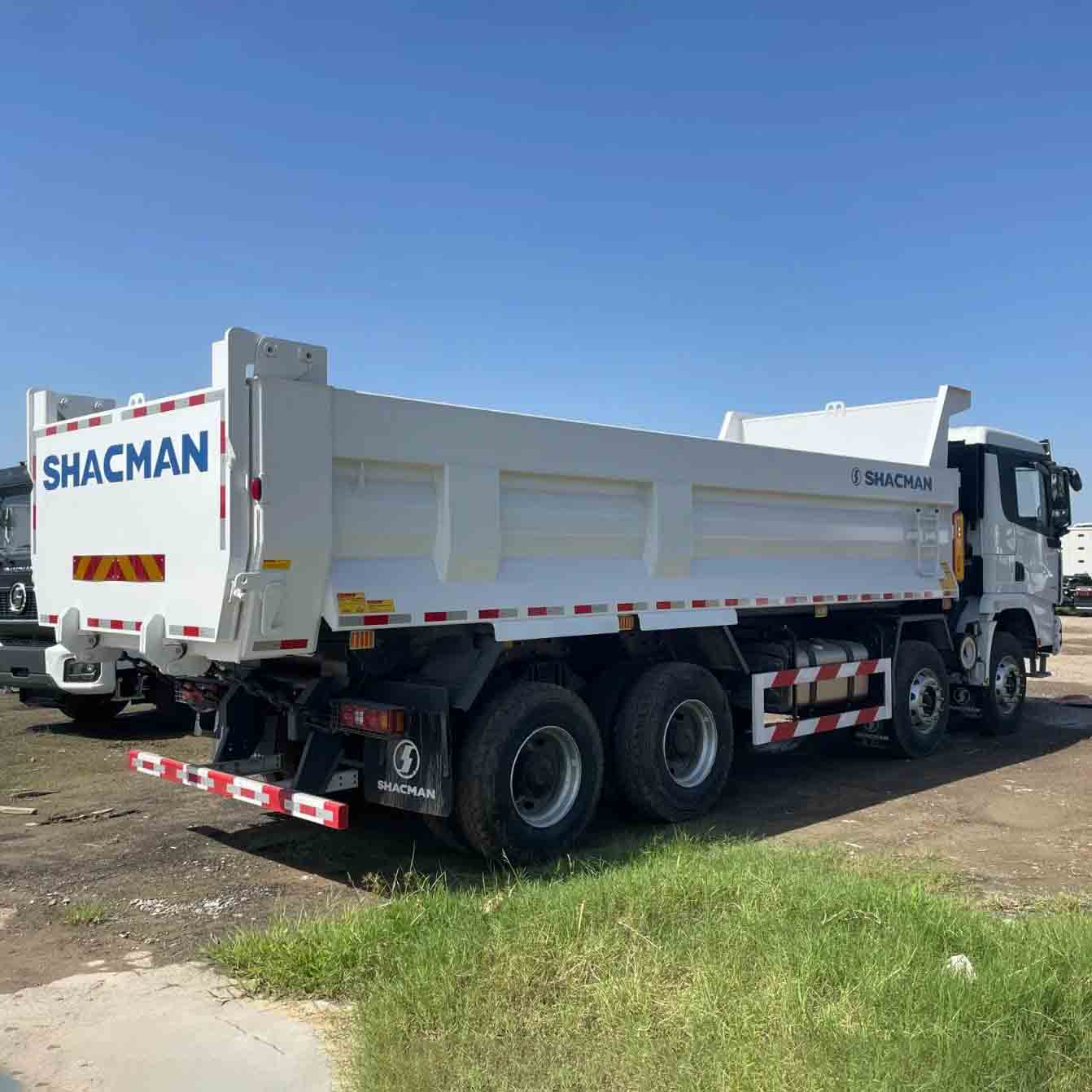

Shacman 8x4 New Dump Truck

Shacman 8x4 New Dump Truck is a high-performance commercial vehicle designed for heavy-duty transport and complex working conditions. With its excellent load-carrying capacity, reliable power system and outstanding adaptability, it is widely used in mining, construction, logistics and other fields.

Send Inquiry

Product Description

Shacman 8x4 dump truck is a high-performance commercial vehicle designed for heavy-duty transport and complex working conditions. With its excellent load-carrying capacity, reliable power system and outstanding adaptability, it is widely used in mining, construction, logistics and other fields.

Shacman 8x4 New Dump Truck Introduction:

Shacman 8x4 dump truck not only has strong power and carrying capacity, but also excels in intelligence, energy saving and environmental protection. The vehicle is equipped with an intelligent on-board system, which can monitor the truck status, fuel consumption and operation data in real time, helping users optimise operation management. At the same time, its engine and exhaust system are carefully tuned to meet the strict environmental standards, which not only reduces emissions, but also improves fuel economy.

Shacman 8x4 New Dump Truck Description

Shacman 8x4 tipper truck adopts advanced chassis design and powerful power system, equipped with high-efficiency engine, which provides abundant power output and can easily cope with various complicated road conditions. Its dumping function is realised by hydraulic system, which is easy to operate and has high unloading efficiency, and can greatly improve the operation efficiency. The body structure is sturdy and made of high-strength steel, ensuring stability and durability under heavy-duty working conditions. In addition, the cab design is user-friendly, providing a comfortable driving experience and reducing driver fatigue during long hours of operation.

Shacman 8x4 New Dump Truck Specification:

driver license:	A1,A2,B2	Announcement Model:	SX3318DT406TL
Drive type:	8X4	Wheelbase:	1800+3975+1400mm
engine:	Weichai WP12NG380E51	Gearbox:	Fast 12JSD180T
Rear axle ratio:	5.262	Body length:	10.75 m
Body width:	2.55 m	Ride height:	3.45 m
Front track:	2036/2036mm	Rear track:	1860/1860mm
Vehicle weight:	15.5 tons	Rated load:	15.37 tons
Total mass:	31 tons	Tonnage level:	Heavy Truck
Approach Angle:	28 degrees	Departure angle:	55 degrees
Origin:	Xi'an, Shaanxi	Market segments:	Heavy load transportation
Remark:	Metal bumper, air main seat, hydraulic suspension, electric air conditioner, electric window roller, Tianxing Jianzhiya version BD vehicle terminal, domestic steering gear, desert air filter, domestic clutch, domestic four-channel ABS, three-stage pedal, transmission with QH50 power take-off, reinforced drive shaft, water tank protection grille, telescopic shaft shift, 180Ah maintenance-free battery	Version:	Super version
Overall speed ratio:	5.262	Fuel Type:	Liquefied Natural Gas (LNG)

Engine parameters

engine model:	Weichai WP12NG380E51	Engine Brand:	Weichai
Number of cylinders:	6 cylinders	Fuel type:	Liquefied Natural Gas (LNG)
Displacement:	11.596L	Emission Standards:	National Five
Maximum horsepower:	380 hp	Maximum output power:	280kW
Maximum Torque:	1700N·m	Maximum torque speed:	1200-1500rpm
Rated speed:	1900rpm	Engine Type:	Single point injection oxidation catalyst

Cargo box parameters

Length of cargo box:	7.8 m	Cargo box width:	2.35 m
Cargo box height:	1.5 m	Cargo box form:	Self-unloading

Cab parameters

Cab:	Mid-length half-high top	Cab suspension:	Four-point airbag suspension
Driver's seat type:	Airbag shock absorbing seat

Gearbox parameters

Gearbox Model:	Fast 12JSD180T	Gearbox brand:	Fast
Forward gears:	12 gears	Number of downs:	2

tank

Fuel tank capacity:

500L

Chassis parameters

Frame size:	850×320 (8+7+8)mm	Front axle description:	MAN9.5T
Permissible load on front axle:	6500/6500kg	Rear Axle Description:	16T MAN double-stage casting bridge
Permissible load on rear axle:	18000(two-axle group)kg	Speed ratio:	5.262
Suspension type (front/rear):	Front and rear multi-leaf springs, four main leaves + four riding horses	Number of springs:	Left 14 Right 13/Left 14 Right 13/12,14/14/12

tire

Tire specifications:

11.00-20 18PR,11.00R20 18PR,12.00-20 18PR,12.00R20 18PR

Number of tires:

Shacman 8x4 New Dump Truck Details

- Power system: equipped with Weichai or Cummins high-efficiency engine, high torque, low fuel consumption.

- Chassis design: It adopts 8x4 drive form, with strong carrying capacity, equipped with reinforced frame and heavy-duty suspension system, adapting to harsh road conditions.

- Dumping function: hydraulic lifting system is stable and reliable, fast unloading speed and easy to operate.

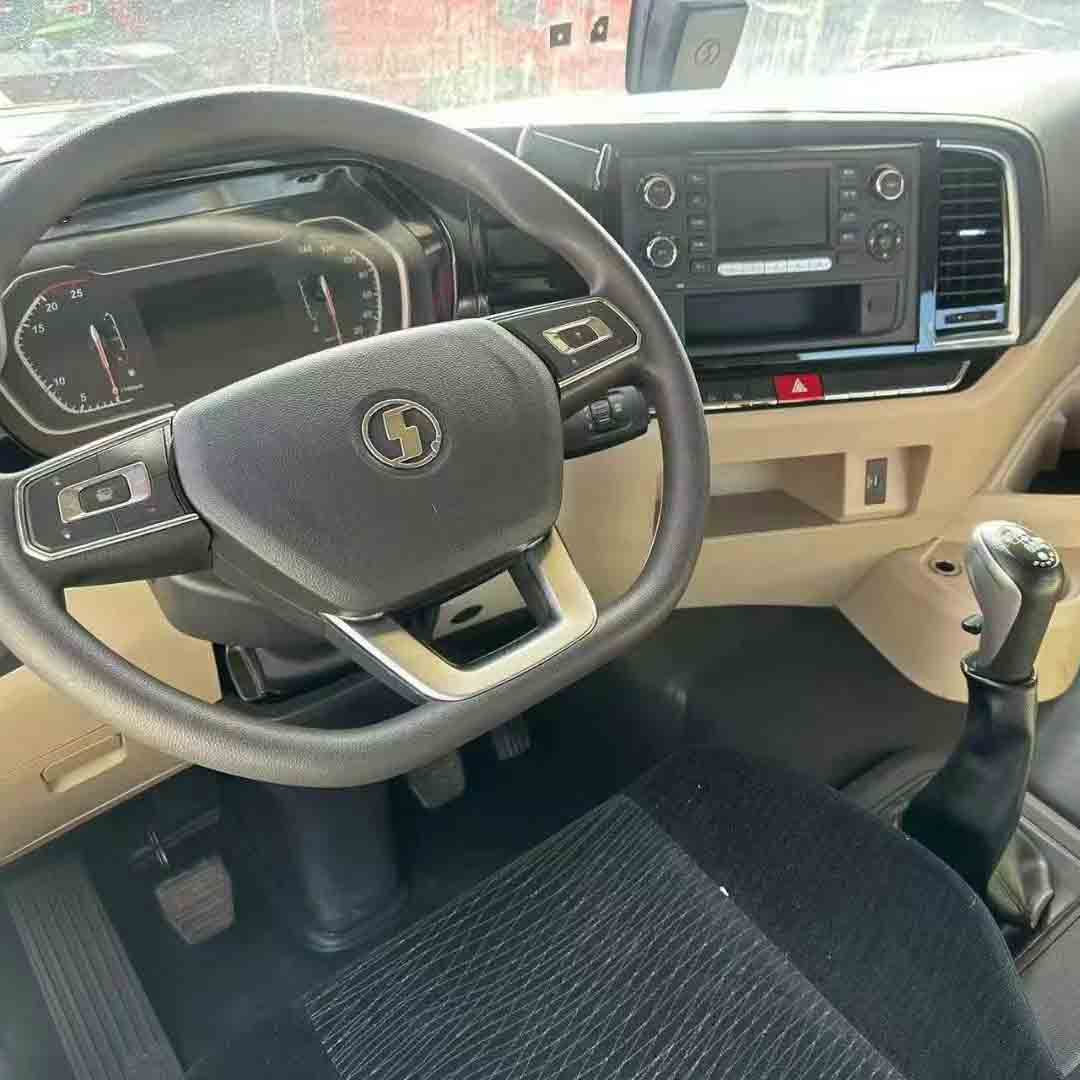

- Cab: Spacious and comfortable driving space, equipped with multi-function steering wheel, air-conditioning system and intelligent instrument panel to enhance driving experience.

- Safety: Equipped with ABS anti-locking system, exhaust brake and reversing radar and other safety features to ensure driving safety.

Shacman 8x4 New Dump Truck Application

Shacman 8x4 dump trucks are widely used in mining, earthworks, construction sites, port logistics and other scenarios. Whether it is a rugged mountain road or a muddy construction site, Shaanqi 8x4 dump truck can easily cope with it, providing users with efficient and reliable heavy-duty transport solutions.
