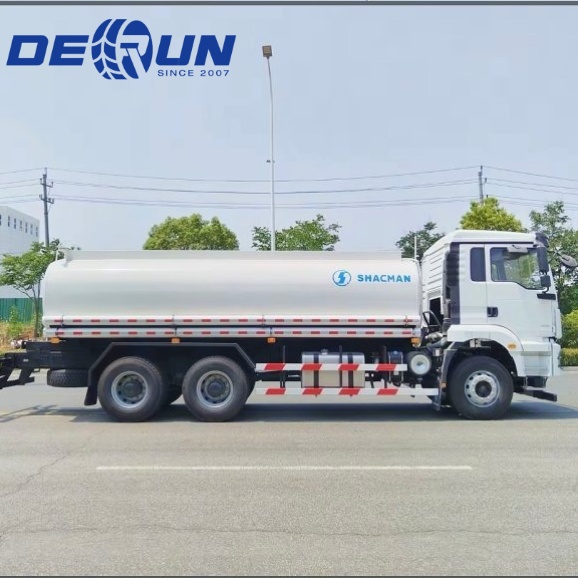

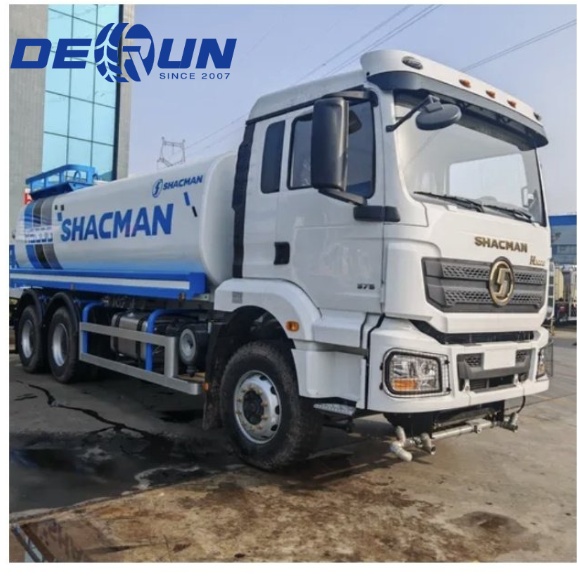

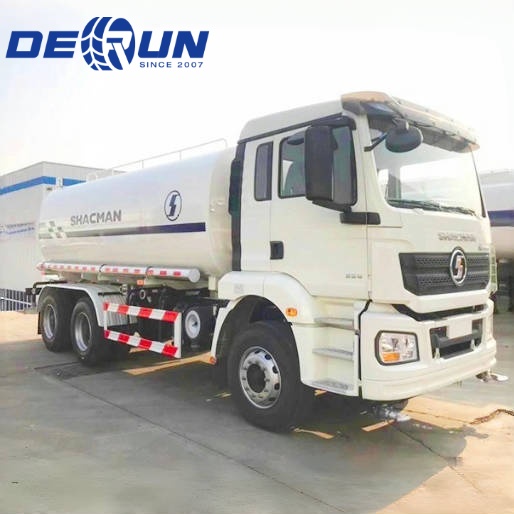

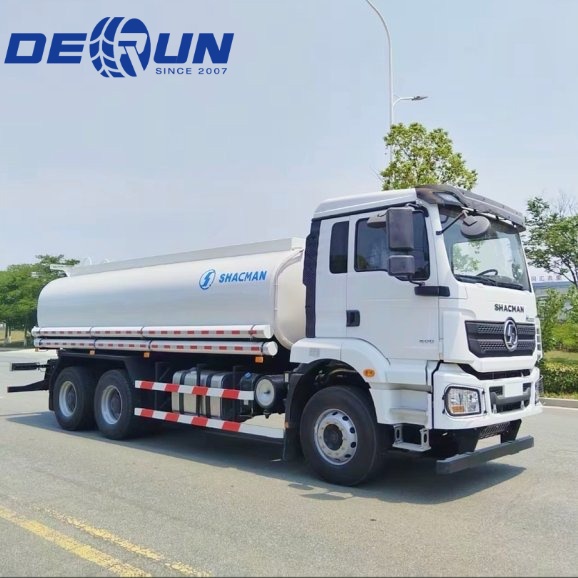

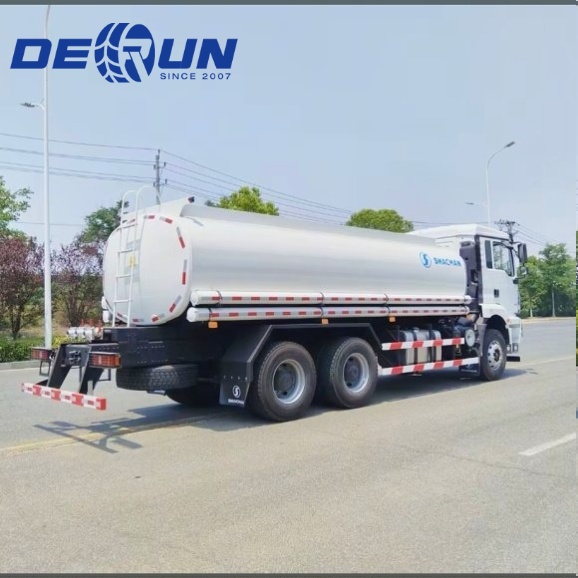

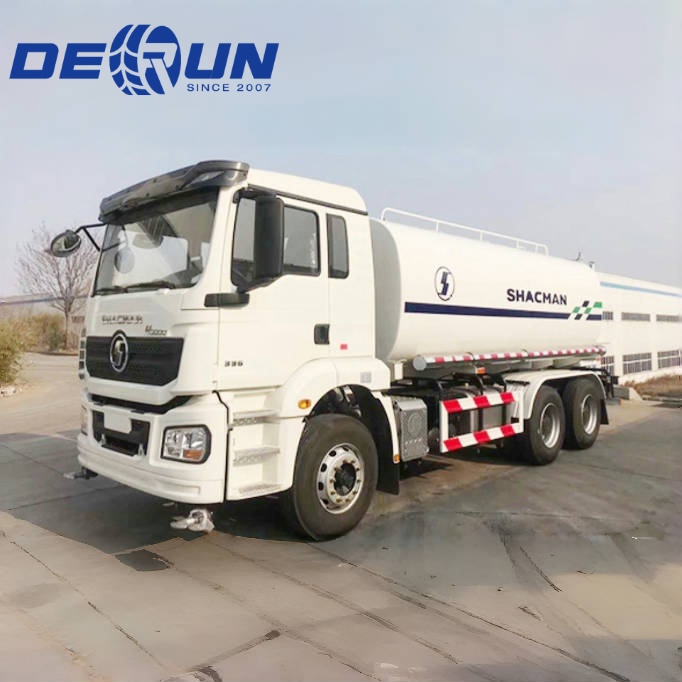

Shacman H3000 6x4 water tank sprinkler truck

Shacman H3000 6x4 water tank sprinkler truck description

Shacman H3000 6x4 water tank sprinkler truck is a high-efficiency sprinkler truck designed for sanitation and landscaping needs by Shaanqi Group, which has become an ideal choice for urban environment maintenance due to its excellent performance and reliable quality. Its appearance adopts streamlined body design, reducing wind resistance while improving fuel economy, the cab is spacious and comfortable, with rich internal configurations, providing a good working environment for the operator.

Shacman H3000 6x4 water tank sprinkler truck introduction

Shacman H3000 6x4 water tank sprinkler truck is equipped with Weichai WP10.300E22 Euro II engine, maximum horsepower 300 hp, matched with Fast RTD11509C with QH50 power take off transmission, which is highly efficency to ensure that the sprinkler operation is carried out smoothly. The vehicle adopts 6x4 driving form, with wheelbase of 4375 + 1400mm, vehicle size of 9000×2500×3200mm, cargo compartment size of 6.5×2.4×1.52m, maximum volume of 20 cubic metres, rated load of 12.77 tonnes, which is able to meet the demand of large-capacity watering. Its cab is equipped with four-point hydraulic suspension system, hydraulic main seat, electric window shaker, manual flip, electric air conditioning and other comfortable configurations, convenient operation, comfortable ride.

Shacman H3000 6x4 water tank sprinkler truck specification

MODEL		SX5255GSSDR434
Driver position		Left Hand
Driving type		6*4
Wheelbase/(mm)		4275+1400
Max. Speed/(km/h)		80km/h
Engine	Brand	WEICHAI
	Model	WP10.340E22
	Emission Standard	EURO II
	Rated output power/（PS）	340
	Displacement(L)	9.726L
Transmission	Brand	FAST
	Model	9_RTD11509C--QH50
Front axle	Brand	HANDE
	Model	MAN 7.5T
Rear axle	Brand	HANDE
	Model	13T MAN double reduction driving axle Speed ratio: 5.266
Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		850x300(8+5)
Suspension		Front and rear multi-leaf spring two main flims+two horse riding
Fuel tank		400L Aluminum alloy
Wheels and tires		12R22.5
Brakes		Running brake: Dual circuit compressed air brake
		Parking brake: Air discharging with spring control
		Auxiliary brake: Engine exhaust brake
Cabin		Air main seat, four point air suspension cab, electrically controlled automatic constant temperature air conditioning, electric window shaking machine, manual flipping, ordinary air filter, flat mounting plate, metal bumper, hinged boarding pedal, split mudguard, 165Ah maintenance battery, SHACMAN identification, full English identification

Shacman H3000 6x4 water tank sprinkler truck details

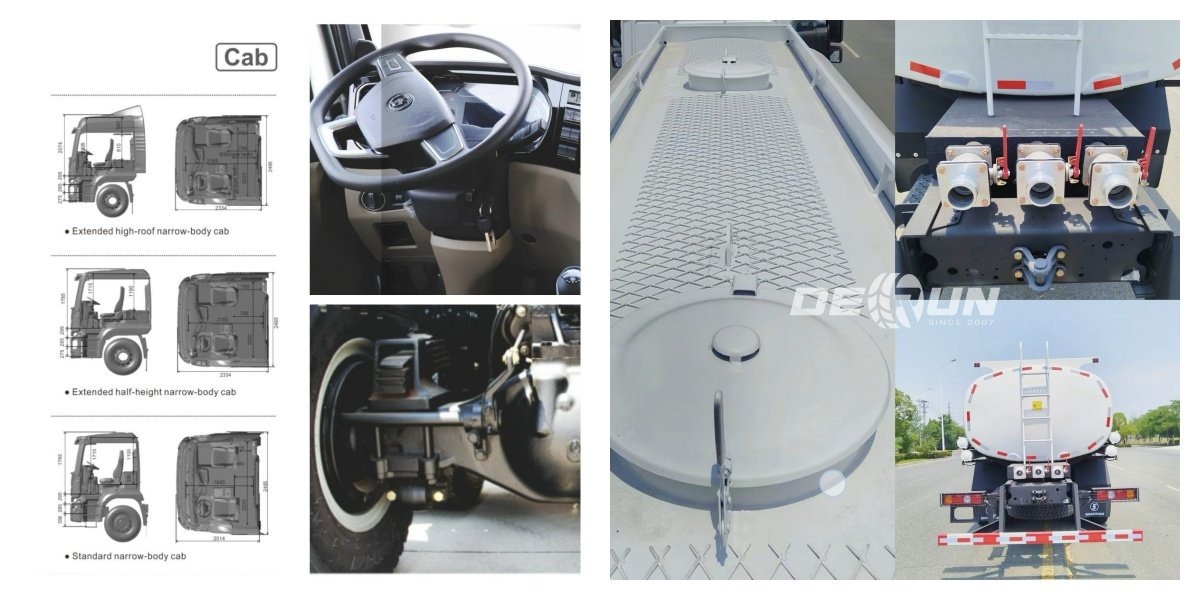

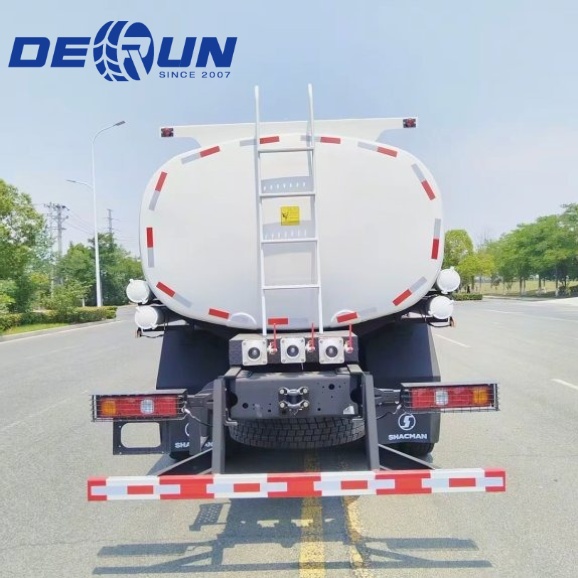

Shacman H3000 6x4 water tank sprinkler truck's engine has low speed and high torque output characteristics, high fuel efficiency, and low maintenance costs. The cab adopts four-point hydraulic suspension system, which effectively reduces vibration and noise and provides a good driving experience. The frame and suspension system are made of high-strength steel to ensure the stability and durability of the vehicle under heavy load conditions. The front and rear less plate spring suspension and dual circuit pneumatic braking system, together with the large-capacity air storage cylinder, ensure safe and reliable braking. The tank adopts square round design, installing a liquid injection tank port, making safety fences on both sides, making safety ladder at the end of the tank, and making a light pipe in front of the tank, which can check the water level inside the tank at any time. On both sides of the tank also made PVC canister, convenient to place the suction pipe. Special device installation of high-power sprinkler pump, driven by the extractor, can be pumped in and out, in and out of the aluminium alloy ball valve installed in the vehicle on the right side of the tank above the tank on both sides of the tank are made of self-flowing ball valves, the use of stainless steel ball valves, one side of the No. 50, the other side of the No. 30 ball valves, to facilitate the use of the latter part of the day. In the rear of the water tank to make a perforated non-slip platform, the platform on both sides of the production of side spray and rear spray, can be sprayed about 5 metres; the platform in the middle of the installation of sprinkler cannons, can be sprayed about 35 metres.

Shacman H3000 6x4 water tank sprinkler truck application

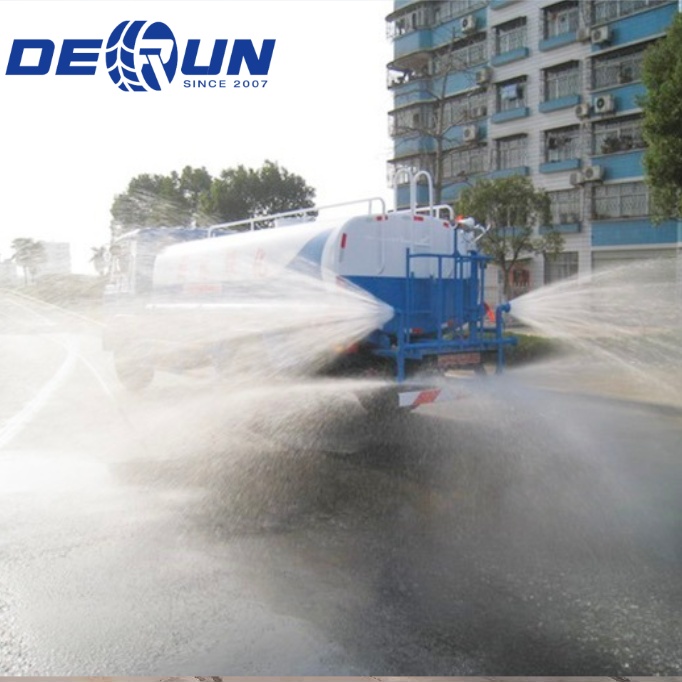

Shacman H3000 6x4 water tank sprinkler truck is suitable for urban roads, highways, parks, parks and other places of sprinkler dust, greening irrigation, spraying operations. Its large-capacity tank and powerful sprinkler pump can meet the sprinkling needs of large areas and improve work efficiency. In the dry season, it can be used for road dust reduction to reduce air pollution; in landscaping, it can provide sufficient water for plants to maintain the beauty and ecological balance of the landscape. In addition, the Shacman H3000 6x4 water tank sprinkler truck can also be used for emergency firefighting water replenishment and other scenarios, with a wide range of application value.
