Shacman X3000 6x4 & 8x4 mixer truck

Shacman X3000 6x4 8x4 mixer truck Introduction

Inheriting more than 50 years’ experience of SHACMAN, relying on the R&D capabilities of national enterprise technology center and post-doctoral workstation. SHACMAN X3000 series brings new products with outstanding  power, distinguished economy, comfortable driving in excellent safety.

Shacman X3000 6x4 8x4 mixer truck Description

Shacman F3000 6x4 & 8x4 cement mixer truck plays a key role in concrete transport in the construction industry, and ensures efficient concrete transport and quality assurance by virtue of its reliable performance, strong power and excellent mixing function. This truck adopts the F3000 series chassis of Shaanxi Automobile, which has solid sheet metal and strong loading capacity. Its ‘flat head’ design makes it easy to enter and exit the city, avoiding the trouble of height restriction poles. The cab is equipped with airbags and shock-absorbing seats to enhance the driving experience. The top-mounted mixing tank and blades are made of alloy steel and wear-resistant materials, which greatly improves the service life of the tank.

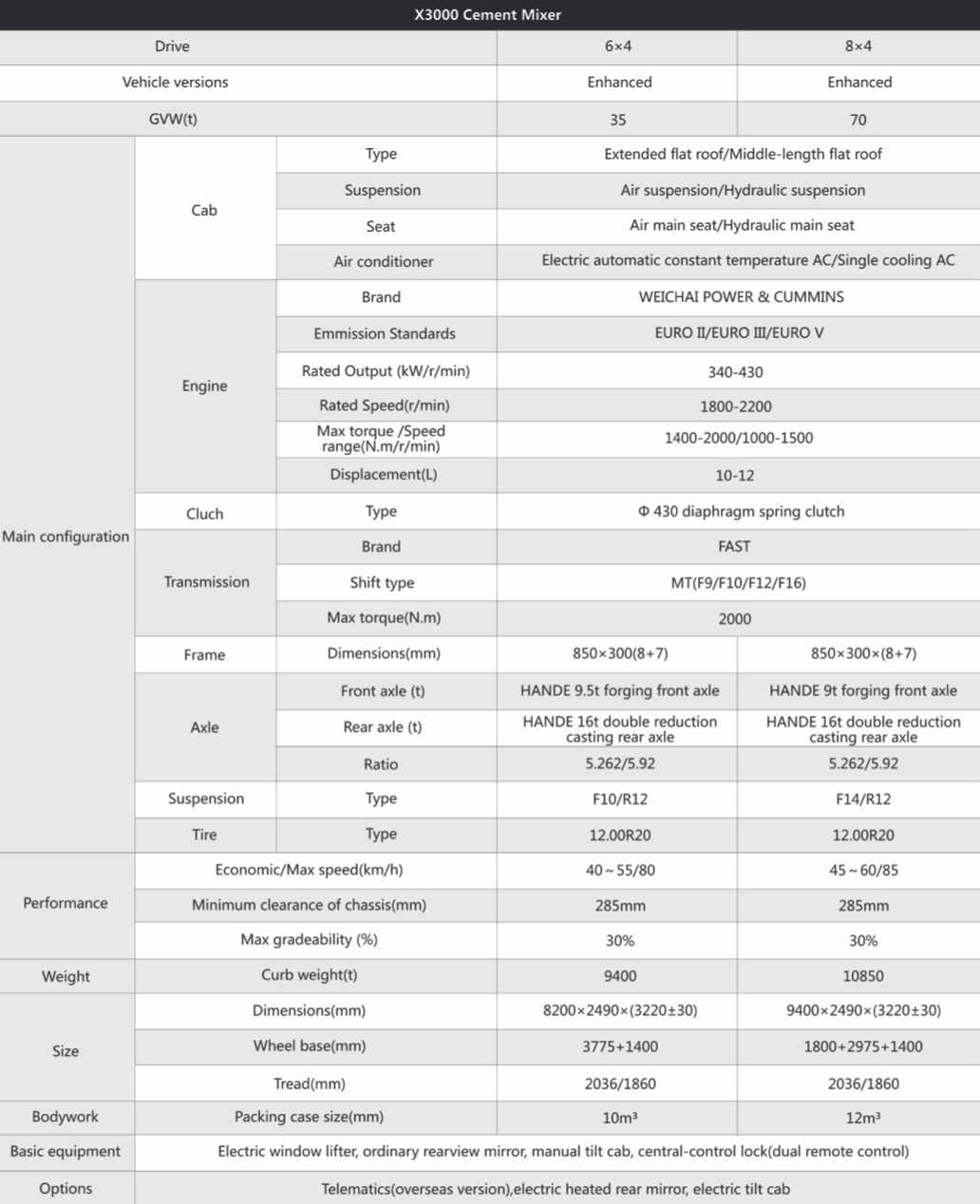

Shacman X3000 6x4 8x4 mixer truck specifications

Shacman X3000 6x4 8x4 mixer truck details

The SHACMAN X3000 mixer truck is an efficient engineering vehicle specifically designed for concrete transportation. It combines the reliability of SHACMAN heavy trucks with professional upper vehicle manufacturing techniques. The mixing tank is made of high-strength wear-resistant steel plates and is typically 8-12 cubic meters in volume. The inner wall is welded with double helical blades, ensuring uniform mixing of concrete during transportation and preventing segregation or solidification. The tank is driven by a hydraulic motor and is paired with an imported reducer for high transmission efficiency and smooth operation. It supports forward and reverse discharging, with a residual rate of less than 1%.

The chassis is equipped with Wuxi Chaiwei WP10/WP12 engines, with maximum power ranging from 350 to 460 horsepower. It is matched with Fatai 12-speed transmission and Hande MAN technical axle, suitable for complex construction site conditions. The cab adopts a four-point suspension design and is equipped with airbag shock-absorbing seats, significantly enhancing the driver's comfort. The tank surface undergoes anti-corrosion sandblasting treatment, and an optional spray system can be installed to prevent concrete from adhering. The rear discharge chute can rotate 270 degrees, and the operation lever is centrally arranged on the right side of the vehicle, facilitating single-person precise control. The entire vehicle complies with the national VI emission standards and is an efficient and environmentally friendly concrete transportation solution for urban construction projects.

Shacman X3000 6x4 8x4 mixer truck applications

The SHACMAN X3000 mixer truck is a heavy-duty engineering vehicle specially designed for concrete transportation and mixing. It is widely used in urban construction, road construction, bridge engineering, and large-scale infrastructure projects. Its efficient and reliable performance makes it an important transportation equipment for concrete mixing stations and construction sites.

In urban construction, the SHACMAN X3000 mixing truck is mainly used for transporting pre-mixed concrete, ensuring that the concrete maintains uniformity during transportation and avoiding segregation or initial setting. Its hydraulic-driven mixing system can precisely control the speed, meeting the transportation requirements for different grades of concrete. Additionally, the tank body is made of wear-resistant steel plates, with strong corrosion resistance, and is suitable for long-term and high-intensity operations.

In road and bridge construction, this vehicle, with its powerful engine (Weichai WP series engine + Fataste transmission) and stable chassis (Han De axle), can adapt to the rough conditions of the construction site and ensure that the concrete is delivered on time. In addition, the 270° rotatable discharge chute and the low residual rate design have improved the construction efficiency and reduced material waste.

The SHACMAN X3000 mixer truck also complies with the national VI emission standards, balancing environmental protection and efficiency. It is an indispensable solution for concrete transportation in modern construction projects.
